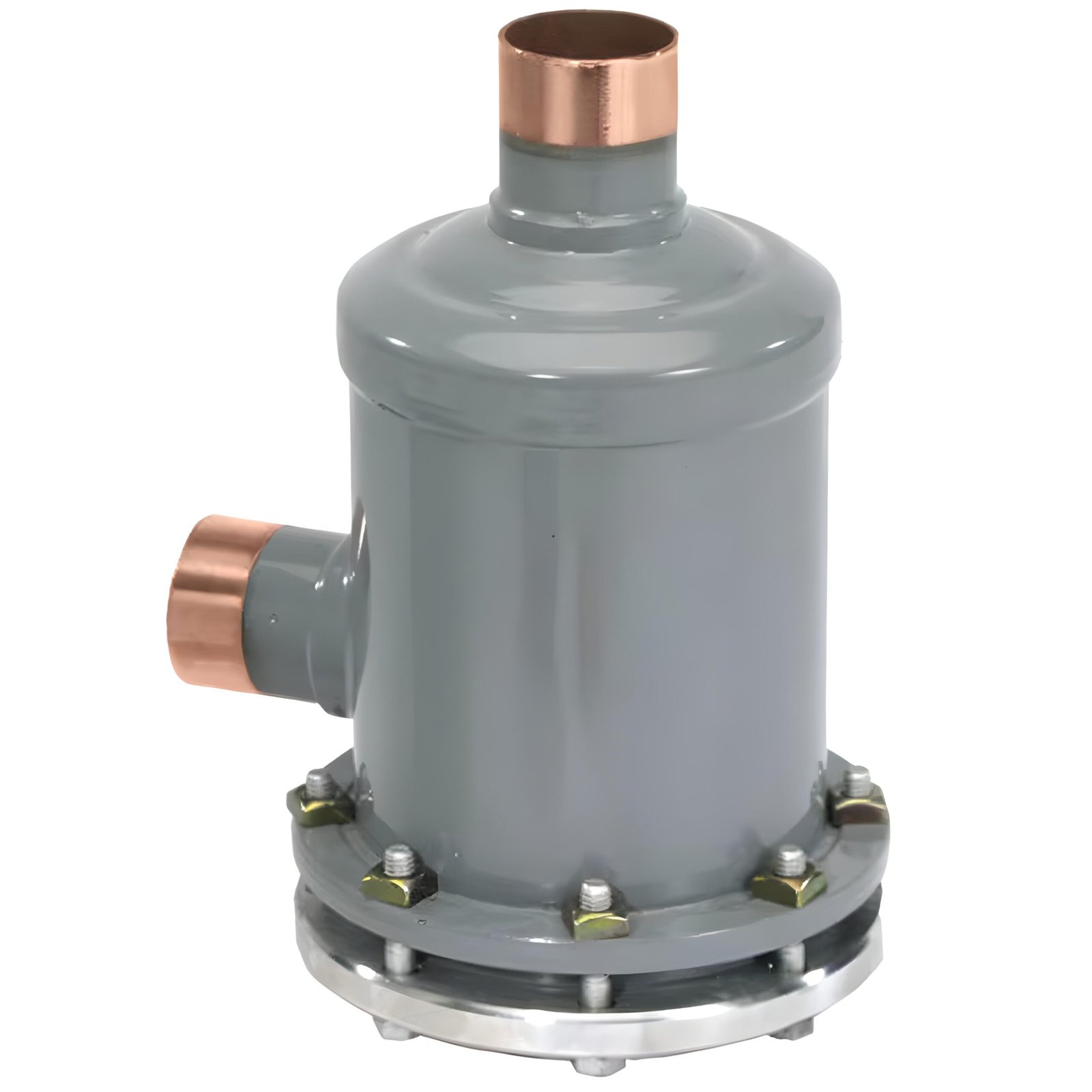

Sporlan’s Suction Line Replaceable Model Filter-Driers from the Catch-All® Series offer exceptional control of contaminants in HVAC&R systems, including moisture, acids, sludge, varnish, wax, and solid debris. These filter-driers ensure the longevity, efficiency, and capacity of modern air-conditioning and refrigeration systems, even after a compressor motor burn-out. Available in various sizes and fitting configurations, they are suitable for systems up to 30 tons. Featuring an activated charcoal core for post-compressor burn-out clean-up, a high-performance desiccant package, and a porous molded core, they provide excellent filtration for TEV and compressor protection. They come with SAE flare fittings and solid copper ODF fittings and are compatible with a wide range of refrigerants. Additionally, they are UL Listed for 650 psig rated pressure for R-410A and Sub-critical CO2 refrigerant use, and compliant with ROHS, REACH, ATEX, and PED standards.
| Feature | Specification |
|---|---|
| Contaminant Control | Exceptional control of moisture, acids, sludge, varnish, wax, and solid debris |
| Activated Charcoal Core | Removes all types of system contaminants following a compressor motor burn-out |
| Desiccant Package | High-performance desiccant package for high water and acid capacity |
| Core Material | Porous molded core for excellent filtration of solid debris |
| Sizes | Available in sizes from 8 cu. in. to 60 cu. in. and 3/8″ to 1-1/8″ fittings |
| Refrigerant Compatibility | Suitable for use with HCFC, HFC, HFO, and HC refrigerants |
| UL Listing | UL Listed for 650 psig rated pressure for R-410A and Sub-critical CO2 refrigerant use |
| Compliance | Compliant with ROHS, REACH, ATEX, and PED standards |
| Applications | Suction line drying and filtering for solid contaminant removal, system clean-up |
