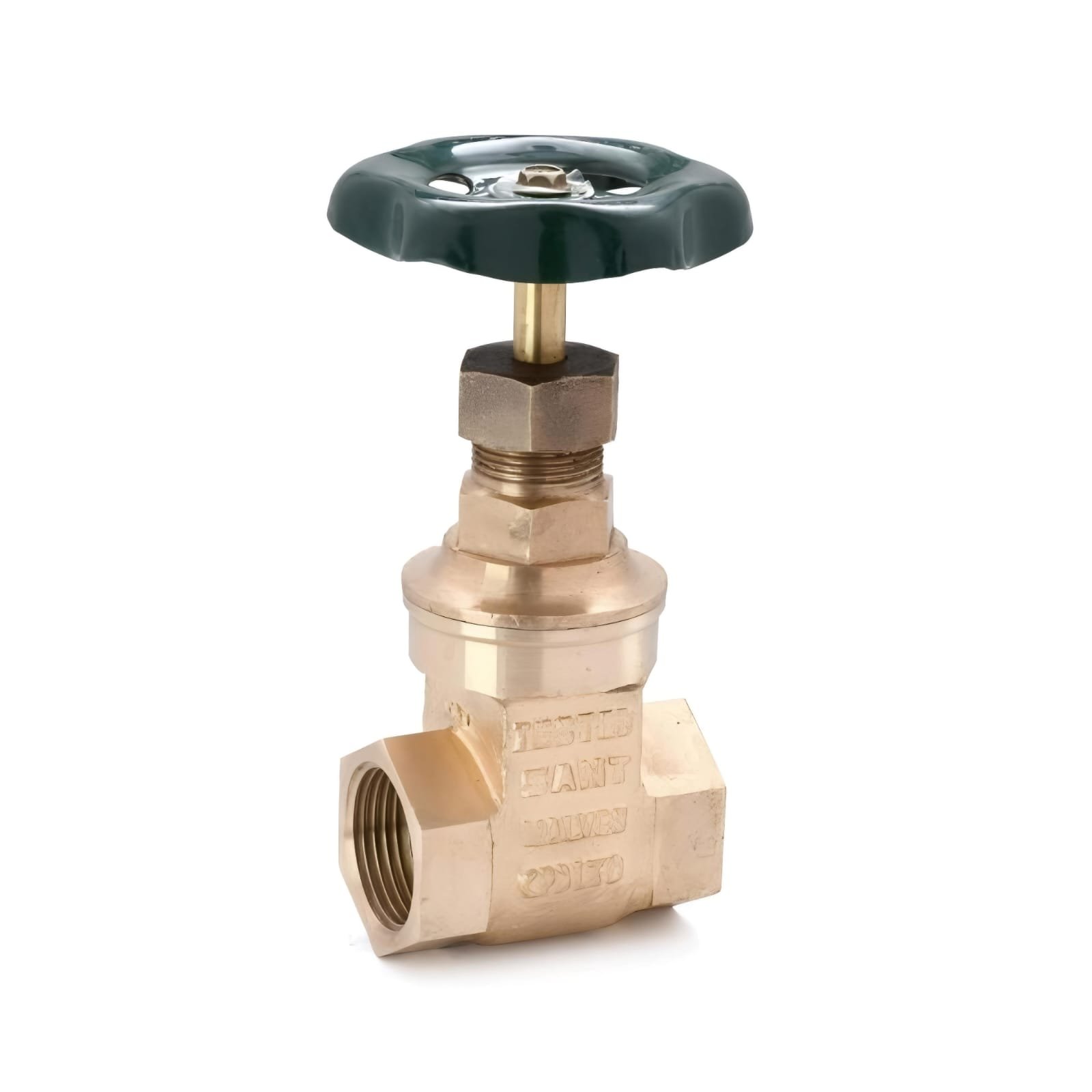

The SBM-1 Bronze Gate Valve is a robust and reliable valve designed for high-pressure applications. It follows the Peglar Type PN-20 pattern, crafted from GM (IS:318 Gr.LTB2) bronze for durability and strength. The valve features a screwed-in bonnet with an inside screw mechanism and a non-rising stem for a compact design. It incorporates an integral seat and solid wedge to ensure a tight seal and long-lasting performance. The trim is made of copper alloy (Cu-Alloy), and it uses expanded pure flexible graphite for gland packing to provide excellent sealing properties. The valve’s end details are fitted with screwed female BSP threads conforming to BS 21, allowing for secure and adaptable connections.
| Specification | Details |
|---|---|
| Product Name | SBM-1 Bronze Gate Valve |
| Type of Pattern | Peglar Type PN-20 |
| Body Material | GM (IS:318 Gr.LTB2) |
| Description | Screwed-in Bonnet, Inside Screw, Non-Rising Stem |
| Type of Seat | Integral Seat |
| Type of Wedge | Solid Wedge |
| Trim | Cu-Alloy |
| Gland Packing | Expanded Pure Flexible Graphite |
| End Details | Screwed female BSP threads to BS 21 |
