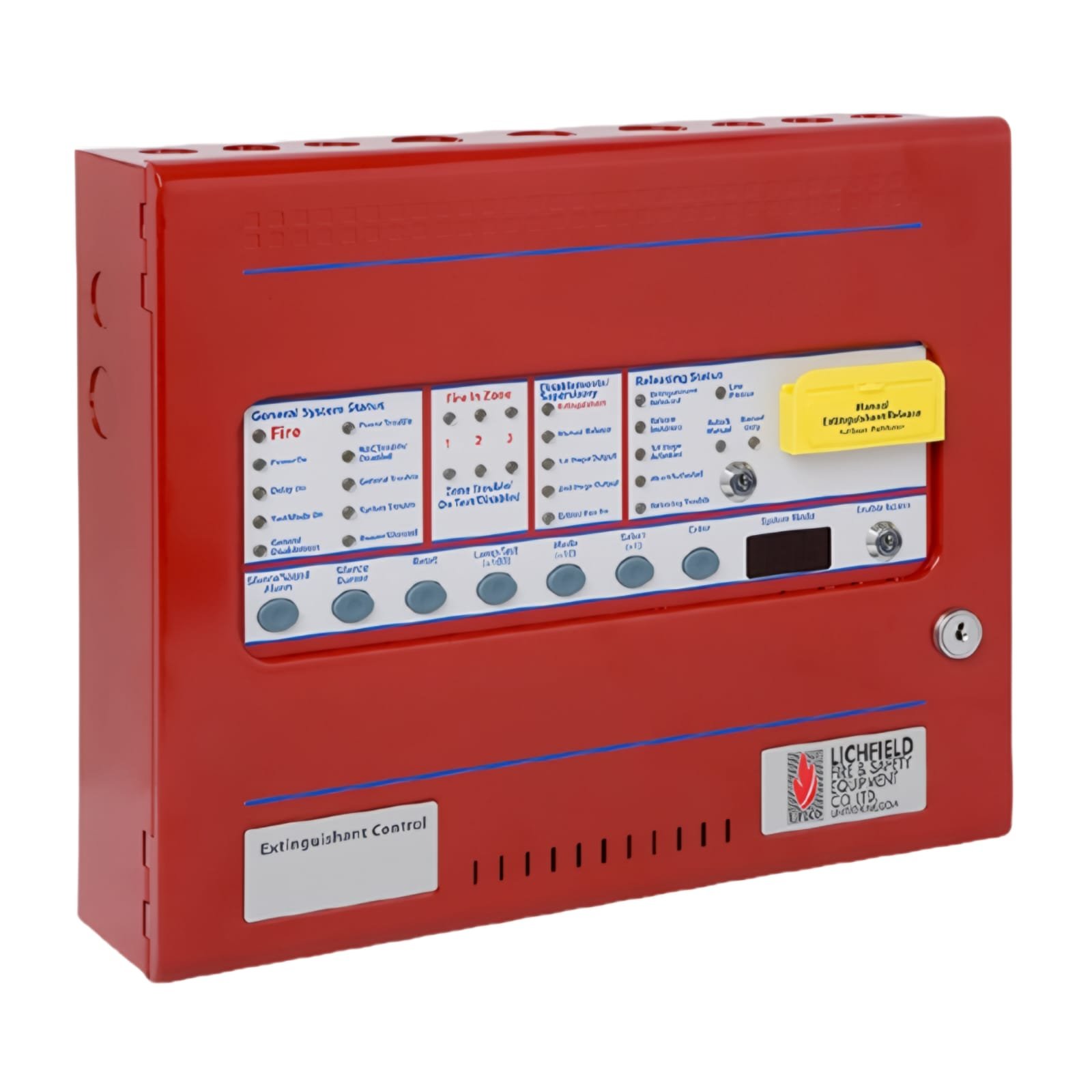

The LIFECO HAWK Releasing Panel is meticulously designed and manufactured to the highest standards, ensuring quality in a controlled environment and holding UL and FM approvals. It is ideally suited for small to medium fixed firefighting installations, offering exceptional value and performance. The panel features three initiation circuits, allowing flexible activation configurations from various detection zones. It supports any combination of zone inputs for complex activation needs, such as two from three type activations. The system is highly configurable, with options for NAC delays, detection delays, and releasing delays up to 60 seconds in 5-second increments. It includes a countdown timer for precise release timing and supports up to seven remote status units for local status indication. The panel’s robust construction with electronics mounted on a single, removable steel plate ensures durability and easy installation. Additional features include compatibility with intrinsically safe barriers, non-latching zone inputs for external system integration, and built-in extract fan control.
| Feature | Description |
|---|---|
| Standards and Approvals | UL and FM approved |
| Initiation Circuits | Three circuits as standard |
| Activation Configurability | Any single zone or combination of zones can be configured to release |
| Configurable Delays | First stage NAC delays, detection delays, releasing delays (up to 60 sec) |
| Manual Release Option | Zero time delay upon manual release |
| Compatibility | Compatible with I.S. barriers |
| Zone Input Option | Non-latching zone input for signals from other systems |
| Releasing Duration | Configurable up to 5 minutes in 5-second steps |
| Countdown Timer | Displays time remaining until release |
| Remote Status Indicators | Supports up to seven four-wire status indicators |
| Built-in Feature | Built-in extract fan control |
| Display | Large LED display for easy configuration and control |
| Installation | Electronics mounted on a single, removable steel plate |
