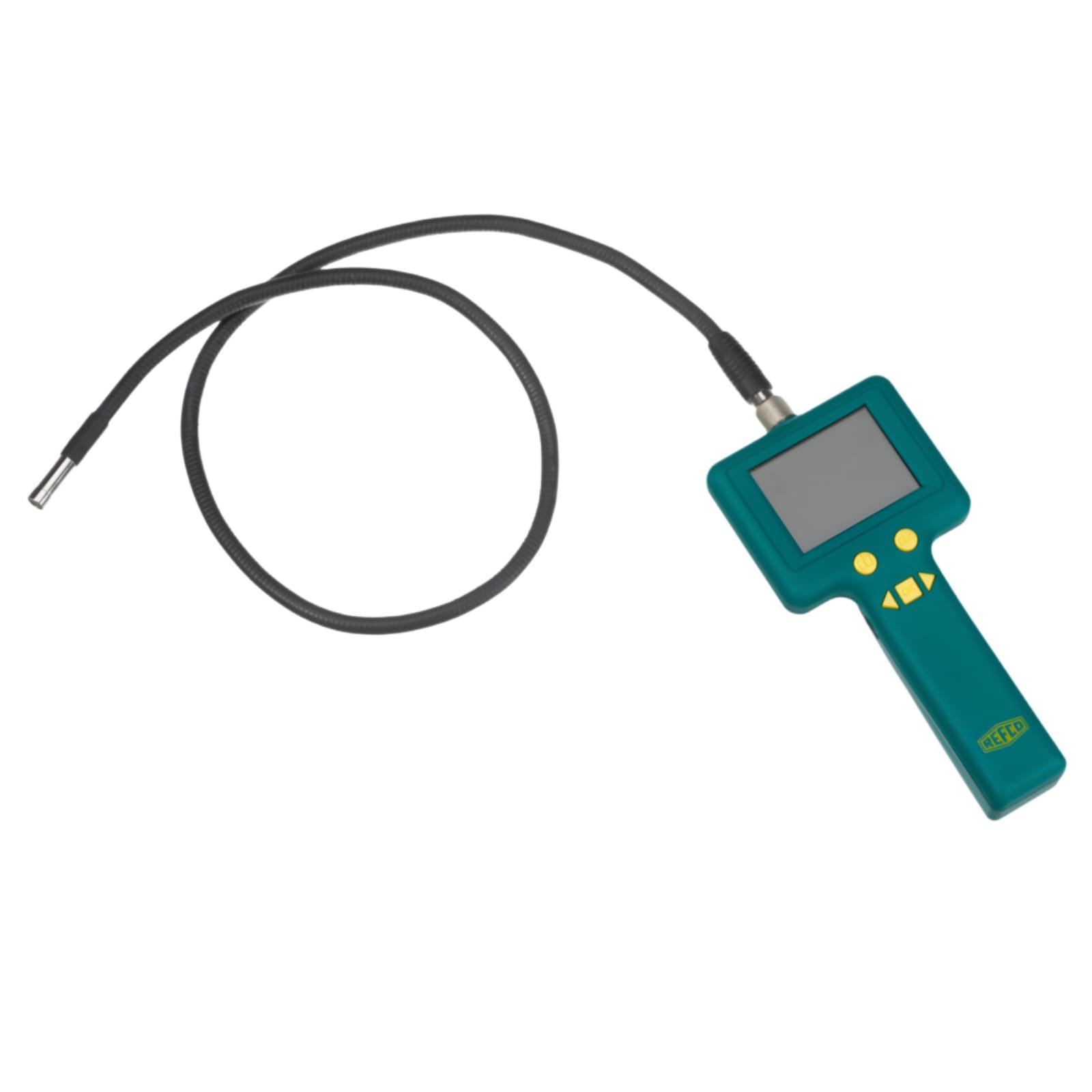

Ref-Scope video inspection camera

  • Video inspection camera for inspecting hard-to-reach areas.
  • Color image sensor for clear visibility.
  • Six LED lamps provide ambient lighting.
  • Control via rotary switch for easy operation.
SKU: AHV0140

  • Video inspection camera for inspecting hard-to-reach areas.
  • Color image sensor for clear visibility.
  • Six LED lamps provide ambient lighting.
  • Control via rotary switch for easy operation.
20 People watching this product now!
[product_acf_field]

Payment Methods:

Description

The REF-SCOPE video inspection camera is a versatile tool designed for inspecting hard-to-reach areas such as nooks and crannies, checking for leaks, nameplates, contamination, or connections. Equipped with a color image sensor and six LED lamps for ambient lighting, it ensures clear visibility in various environments. Control is facilitated via a rotary switch, allowing for easy operation. The shoulder bag includes essential accessories such as cleaning materials, batteries, an AV cable, mirror, hook, and an extra strong magnet. The device features a 3.5″ TFT digital panel display with a resolution of 320 x 240 pixels, providing crisp and detailed images. It offers display adjustment options for contrast, brightness, sharpness, and color saturation. The LCD backlight is powered by LED technology, ensuring optimal visibility. The camera head has a diameter of 10 mm, while the shaft measures 42″ in length. Powered by four AA batteries, it offers a battery life of up to three hours of full functional operation. With a working temperature range of 32 °F to 113 °F (0 °C to 45 °C), it is suitable for various inspection tasks. The device is available in yellow or green color options.



Feature Specification
Color Yellow
Image Sensor Color image sensor
LED Lamps 6 LED lamps for ambient lighting
Control Rotary switch
Display 3.5″ TFT digital panel
Resolution 320 x 240 pixels
Color Configuration R.G.B. stripe
Brightness 430 (nits, cd/m2)
Video Output RCA phone jack
Display Adjustment Contrast, brightness, sharpness, color saturation
LCD Backlight LED
Image Orientation Normal and mirroring display
Camera Head Diameter 0.39″ (10 mm)
Shaft Diameter 0.39″ (10 mm)
Shaft Length 42″ (107 cm)
Power Source 4 AA batteries
Battery Life Up to 3 hours (full functional operation)
Working Temperature 32 °F – 113 °F (0 °C – 45 °C)



Specification

Overview

Processor

Display

RAM

Storage

Video Card

Connectivity

Features

Battery

General

Description

The REF-SCOPE video inspection camera is a versatile tool designed for inspecting hard-to-reach areas such as nooks and crannies, checking for leaks, nameplates, contamination, or connections. Equipped with a color image sensor and six LED lamps for ambient lighting, it ensures clear visibility in various environments. Control is facilitated via a rotary switch, allowing for easy operation. The shoulder bag includes essential accessories such as cleaning materials, batteries, an AV cable, mirror, hook, and an extra strong magnet. The device features a 3.5″ TFT digital panel display with a resolution of 320 x 240 pixels, providing crisp and detailed images. It offers display adjustment options for contrast, brightness, sharpness, and color saturation. The LCD backlight is powered by LED technology, ensuring optimal visibility. The camera head has a diameter of 10 mm, while the shaft measures 42″ in length. Powered by four AA batteries, it offers a battery life of up to three hours of full functional operation. With a working temperature range of 32 °F to 113 °F (0 °C to 45 °C), it is suitable for various inspection tasks. The device is available in yellow or green color options.



Feature Specification
Color Yellow
Image Sensor Color image sensor
LED Lamps 6 LED lamps for ambient lighting
Control Rotary switch
Display 3.5″ TFT digital panel
Resolution 320 x 240 pixels
Color Configuration R.G.B. stripe
Brightness 430 (nits, cd/m2)
Video Output RCA phone jack
Display Adjustment Contrast, brightness, sharpness, color saturation
LCD Backlight LED
Image Orientation Normal and mirroring display
Camera Head Diameter 0.39″ (10 mm)
Shaft Diameter 0.39″ (10 mm)
Shaft Length 42″ (107 cm)
Power Source 4 AA batteries
Battery Life Up to 3 hours (full functional operation)
Working Temperature 32 °F – 113 °F (0 °C – 45 °C)



  • Video inspection camera for inspecting hard-to-reach areas.
  • Color image sensor for clear visibility.
  • Six LED lamps provide ambient lighting.
  • Control via rotary switch for easy operation.
SKU: AHV0140

Description

The REF-SCOPE video inspection camera is a versatile tool designed for inspecting hard-to-reach areas such as nooks and crannies, checking for leaks, nameplates, contamination, or connections. Equipped with a color image sensor and six LED lamps for ambient lighting, it ensures clear visibility in various environments. Control is facilitated via a rotary switch, allowing for easy operation. The shoulder bag includes essential accessories such as cleaning materials, batteries, an AV cable, mirror, hook, and an extra strong magnet. The device features a 3.5″ TFT digital panel display with a resolution of 320 x 240 pixels, providing crisp and detailed images. It offers display adjustment options for contrast, brightness, sharpness, and color saturation. The LCD backlight is powered by LED technology, ensuring optimal visibility. The camera head has a diameter of 10 mm, while the shaft measures 42″ in length. Powered by four AA batteries, it offers a battery life of up to three hours of full functional operation. With a working temperature range of 32 °F to 113 °F (0 °C to 45 °C), it is suitable for various inspection tasks. The device is available in yellow or green color options.



Feature Specification
Color Yellow
Image Sensor Color image sensor
LED Lamps 6 LED lamps for ambient lighting
Control Rotary switch
Display 3.5″ TFT digital panel
Resolution 320 x 240 pixels
Color Configuration R.G.B. stripe
Brightness 430 (nits, cd/m2)
Video Output RCA phone jack
Display Adjustment Contrast, brightness, sharpness, color saturation
LCD Backlight LED
Image Orientation Normal and mirroring display
Camera Head Diameter 0.39″ (10 mm)
Shaft Diameter 0.39″ (10 mm)
Shaft Length 42″ (107 cm)
Power Source 4 AA batteries
Battery Life Up to 3 hours (full functional operation)
Working Temperature 32 °F – 113 °F (0 °C – 45 °C)
