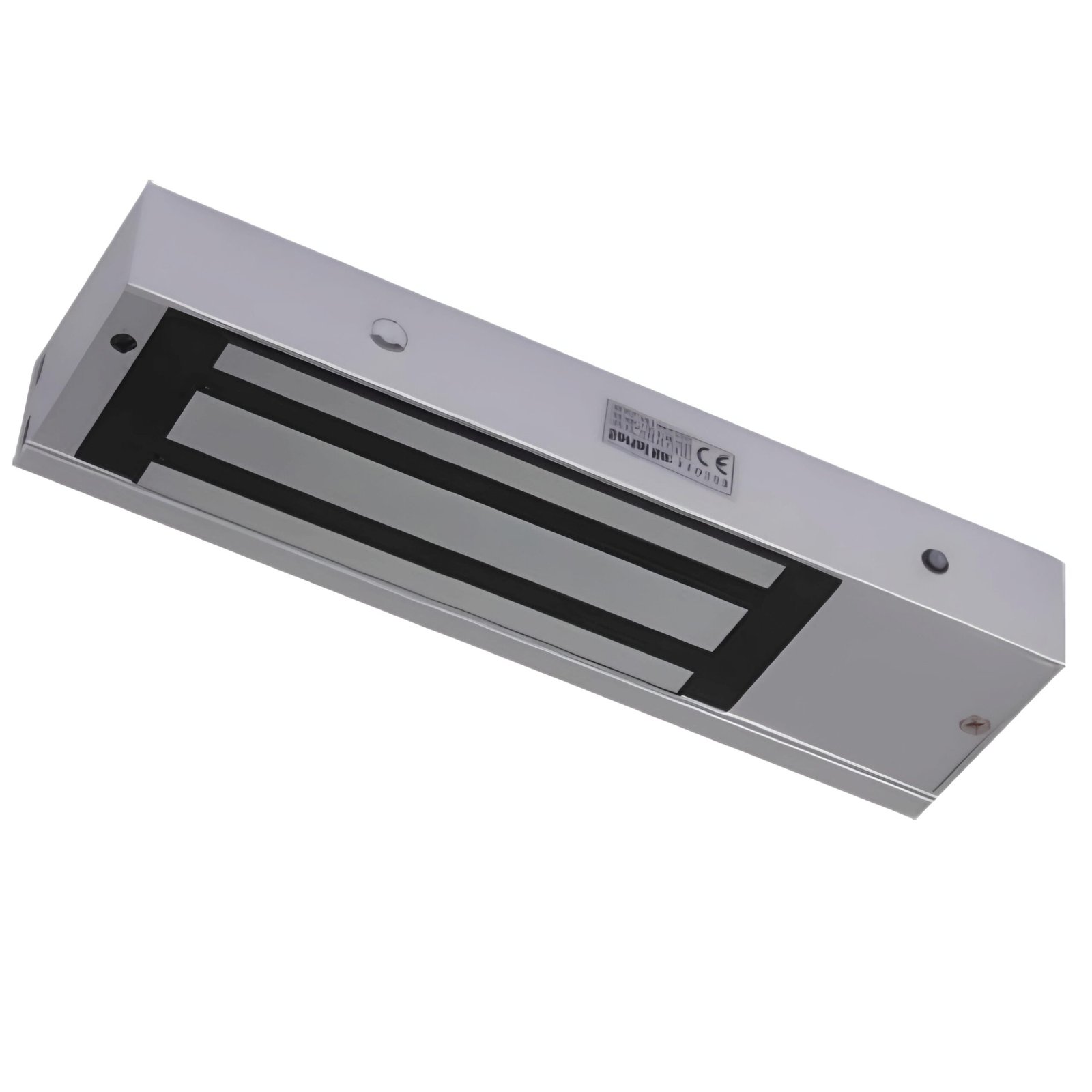

The DS-K4H450 Pro Series Magnetic Lock is designed to deliver robust security solutions, boasting a static linear thrust of 500 kg (1102.5 lbs) to ensure reliable locking mechanisms. Offering flexibility, it accommodates both 12VDC and 24VDC + 10% power supplies, making it suitable for various installation scenarios. Compatible with wooden, glass, and metal doors, its LED indicator simplifies monitoring by displaying lock status with green indicating locked and red for unlocked. Additionally, it provides signal output for door lock status, enhancing overall security measures.
| Feature | Details |
|---|---|
| Thrust | 500 kg (1102.5 lbs) |
| Power Supply | 12/24 VDC + 10% |
| 12 VDC, 420 mA | |
| 24 VDC, 210 mA | |
| Dimensions | Lock Body: 265 mm × 71.8 mm × 38.8 mm (10.43” × 2.83” × 1.53”) |
| Armature Plate: 185 mm × 60 mm × 13 mm (7.28” × 2.36” × 0.51”) | |
| Weight | 4.5 kg (9.92 lb) |
| Signal Output | Dry Contact Signal Output; Support Maximum Power Rate of 3 A |
| NO Output While Locking and NC Output While Unlocking | |
| Maximum Holding Force | 500 kg (1102.5 lbs) |
| Suitable Door | Wooden Door, Glass Door, Metal Door |
