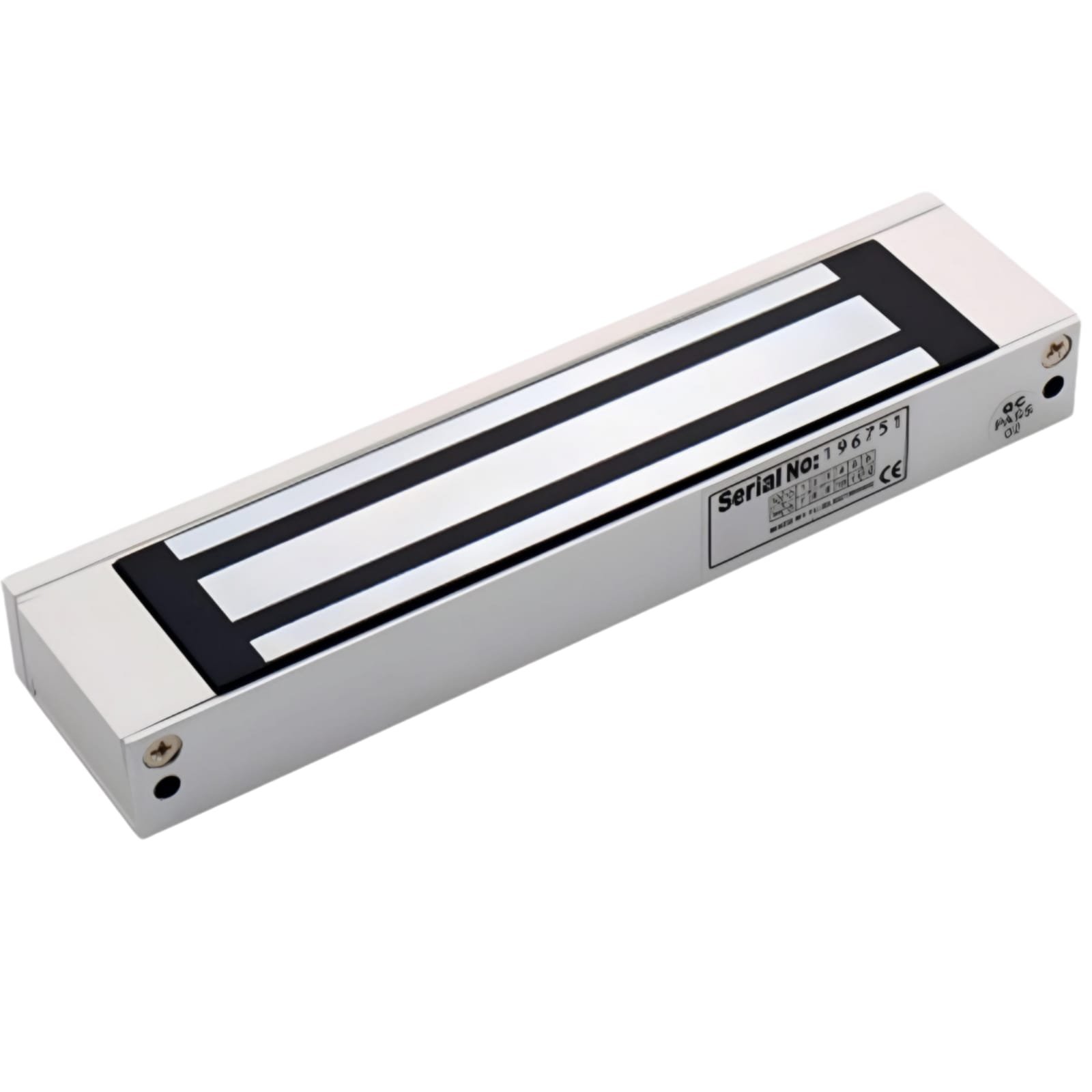

Pro Series Magnetic Lock-(DS-K4H250S)

272 kg (599.8 lbs) static linear thrust
Customizable power supply: 12VDC or 24VDC
LED indicator displays lock status (green for locked, red for unlocked)
Compatible with various door types: single/double leaf, wood, glass, metal, fireproof

SKU: ASC0460

Original price was: SAR 202.50.Current price is: SAR 135.00.

272 kg (599.8 lbs) static linear thrust
Customizable power supply: 12VDC or 24VDC
LED indicator displays lock status (green for locked, red for unlocked)
Compatible with various door types: single/double leaf, wood, glass, metal, fireproof

ENQUIRY!

Compare

Add to wishlist

11 People watching this product now!

[product_acf_field]

Payment Methods:

Description

The DS-K4H250S Pro Series Magnetic Lock offers robust security with a static linear thrust of 272 kg (599.8 lbs). It features customizable power supply options, with default voltage set at 12VDC. Equipped with internal voltage dependent resistors (MOV), this magnetic lock provides additional protection against voltage surges. An LED indicator displays the door lock status, with green indicating the door is locked and red indicating it is unlocked. Crafted from abrasion-proof materials, the lock body and armature plate feature eco-friendly zinc with electroplating for durability.

Feature	Details
Thrust	Max. 272 kg (599.8 lbs) linear thrust
Power Supply	12 VDC/500 mA, 24 VDC/250 mA
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	0 to 95% (Relative Humidity)
Dimensions	Lock body: 240 mm × 49 mm × 25.5 mm (9.45″ × 1.93″ × 1.00″) Armature Plate: 180 mm × 38 mm × 11 mm (7.1 × 1.5″ × 0.4″)
Weight	2.1 kg (4.63 lb)
Material	Shell: Hard Anodizing Electroplating Operated Lock Body: Eco-friendly Zinc with Electroplating Operated Armature Plate: Eco-friendly Zinc with Electroplating Operated
Door Type	Single leaf, Double leaf, Wooden, Glass, Metal, Fireproof
Signal Output	Dry Contact Signal Output, Support Maximum Power Rate of 3A; NO Output While Locking and NC Output While Unlocking

Specification

Overview

Processor

Display

RAM

Storage

Video Card

Connectivity

Features

Battery

General

Description

The DS-K4H250S Pro Series Magnetic Lock offers robust security with a static linear thrust of 272 kg (599.8 lbs). It features customizable power supply options, with default voltage set at 12VDC. Equipped with internal voltage dependent resistors (MOV), this magnetic lock provides additional protection against voltage surges. An LED indicator displays the door lock status, with green indicating the door is locked and red indicating it is unlocked. Crafted from abrasion-proof materials, the lock body and armature plate feature eco-friendly zinc with electroplating for durability.

Feature	Details
Thrust	Max. 272 kg (599.8 lbs) linear thrust
Power Supply	12 VDC/500 mA, 24 VDC/250 mA
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	0 to 95% (Relative Humidity)
Dimensions	Lock body: 240 mm × 49 mm × 25.5 mm (9.45″ × 1.93″ × 1.00″) Armature Plate: 180 mm × 38 mm × 11 mm (7.1 × 1.5″ × 0.4″)
Weight	2.1 kg (4.63 lb)
Material	Shell: Hard Anodizing Electroplating Operated Lock Body: Eco-friendly Zinc with Electroplating Operated Armature Plate: Eco-friendly Zinc with Electroplating Operated
Door Type	Single leaf, Double leaf, Wooden, Glass, Metal, Fireproof
Signal Output	Dry Contact Signal Output, Support Maximum Power Rate of 3A; NO Output While Locking and NC Output While Unlocking

272 kg (599.8 lbs) static linear thrust
Customizable power supply: 12VDC or 24VDC
LED indicator displays lock status (green for locked, red for unlocked)
Compatible with various door types: single/double leaf, wood, glass, metal, fireproof

SKU: ASC0460

Description

The DS-K4H250S Pro Series Magnetic Lock offers robust security with a static linear thrust of 272 kg (599.8 lbs). It features customizable power supply options, with default voltage set at 12VDC. Equipped with internal voltage dependent resistors (MOV), this magnetic lock provides additional protection against voltage surges. An LED indicator displays the door lock status, with green indicating the door is locked and red indicating it is unlocked. Crafted from abrasion-proof materials, the lock body and armature plate feature eco-friendly zinc with electroplating for durability.

Feature	Details
Thrust	Max. 272 kg (599.8 lbs) linear thrust
Power Supply	12 VDC/500 mA, 24 VDC/250 mA
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	0 to 95% (Relative Humidity)
Dimensions	Lock body: 240 mm × 49 mm × 25.5 mm (9.45″ × 1.93″ × 1.00″) Armature Plate: 180 mm × 38 mm × 11 mm (7.1 × 1.5″ × 0.4″)
Weight	2.1 kg (4.63 lb)
Material	Shell: Hard Anodizing Electroplating Operated Lock Body: Eco-friendly Zinc with Electroplating Operated Armature Plate: Eco-friendly Zinc with Electroplating Operated
Door Type	Single leaf, Double leaf, Wooden, Glass, Metal, Fireproof
Signal Output	Dry Contact Signal Output, Support Maximum Power Rate of 3A; NO Output While Locking and NC Output While Unlocking
