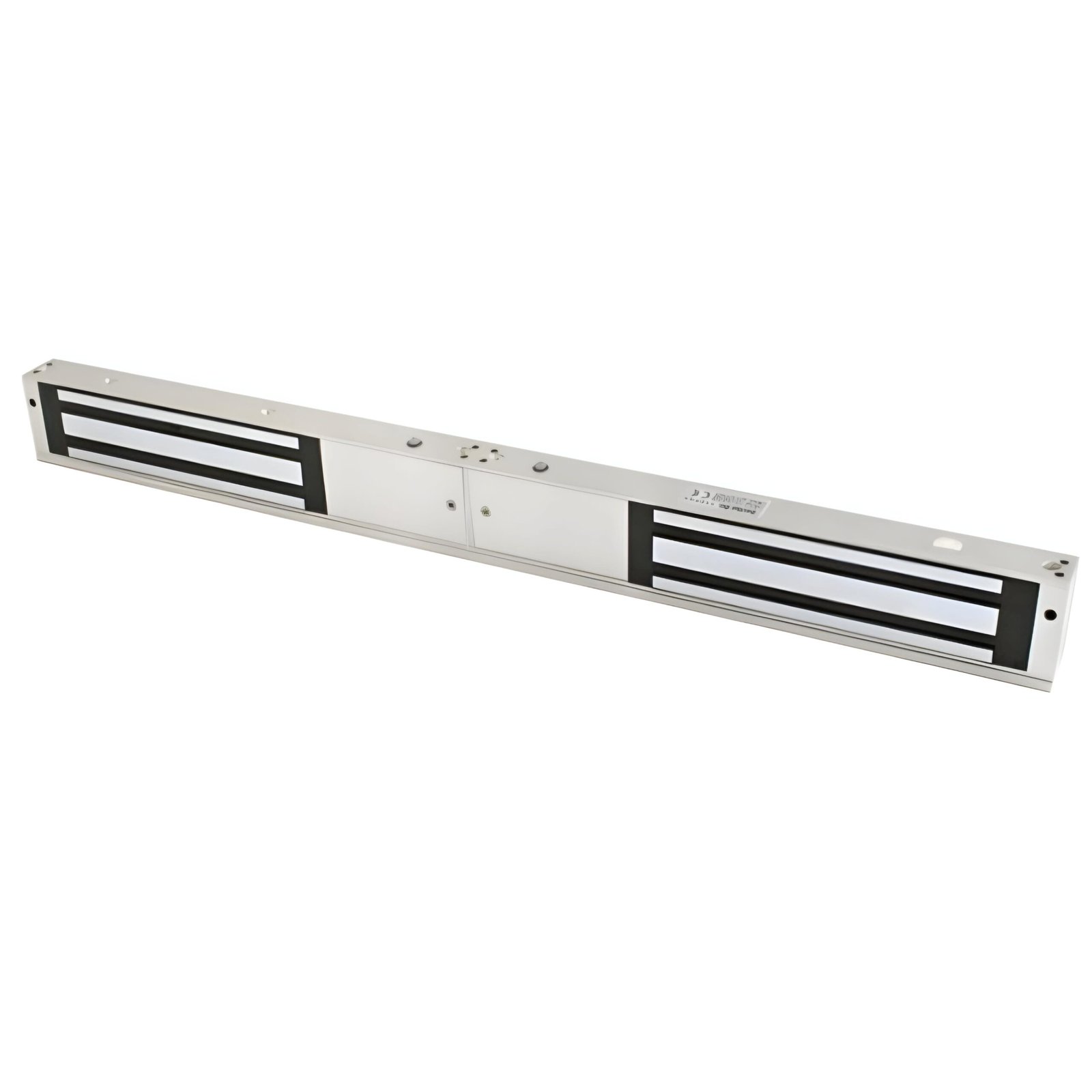

Pro Series Magnetic Lock-(DS-K4H250D)

272 kg (599.8 lbs) thrust per lock
Adjustable power supply: 12VDC or 24VDC
LED indicator shows lock status (red = unlocked, green = locked)
Compatible with various doors: single/double leaf, wood, glass, metal, fireproof

SKU: ASC0459

Original price was: SAR 405.00.Current price is: SAR 270.00.

272 kg (599.8 lbs) thrust per lock
Adjustable power supply: 12VDC or 24VDC
LED indicator shows lock status (red = unlocked, green = locked)
Compatible with various doors: single/double leaf, wood, glass, metal, fireproof

ENQUIRY!

Compare

Add to wishlist

13 People watching this product now!

[product_acf_field]

Payment Methods:

Description

The DS-K4H250D Pro Series Magnetic Lock offers robust security with a static linear thrust of 272 kg (599.8 lbs) per lock. It features customizable power supply options, with a default voltage of 12 VDC, and supports a range of door types including single leaf, double leaf, wooden, glass, metal, and fireproof doors. Equipped with internal voltage dependent resistors (MOV), this magnetic lock provides additional protection against voltage surges. An LED indicator displays the door lock status, with red indicating the door is unlocked and green indicating it is locked. Crafted from abrasion-proof materials, the lock body and armature plate feature eco-friendly zinc with electroplating for durability.

Feature	Details
Thrust	Max. 272 kg (599.8 lbs) × 2 linear thrust
Power Supply	12 VDC/500 mA, 24 VDC/250 mA
Working Temperature	-10 °C to +55 °C (14 °F to 131 °F)
Working Humidity	0 to 95% (Relative Humidity)
Dimensions	Lock body: 480 mm × 49 mm × 25.5 mm (18.90″ × 1.93″ × 1.00″) Armature Plate: 180 mm × 38 mm × 11 mm (7.1 × 1.5″ × 0.4″ )
Weight	4.2 kg (9.3 Lbs)
Material	Shell: Hard Anodizing Electroplating Operated Lock Body: Eco-friendly Zinc with Electroplating Operated Armature Plate: Eco-friendly Zinc with Electroplating Operated
Door Type	Single leaf, Double leaf, Wooden, Glass, Metal, Fireproof
Signal Output	Dry Contact Signal Output, Support Maximum Power Rate of 3A; NO Output While Locking and NC Output While Unlocking
