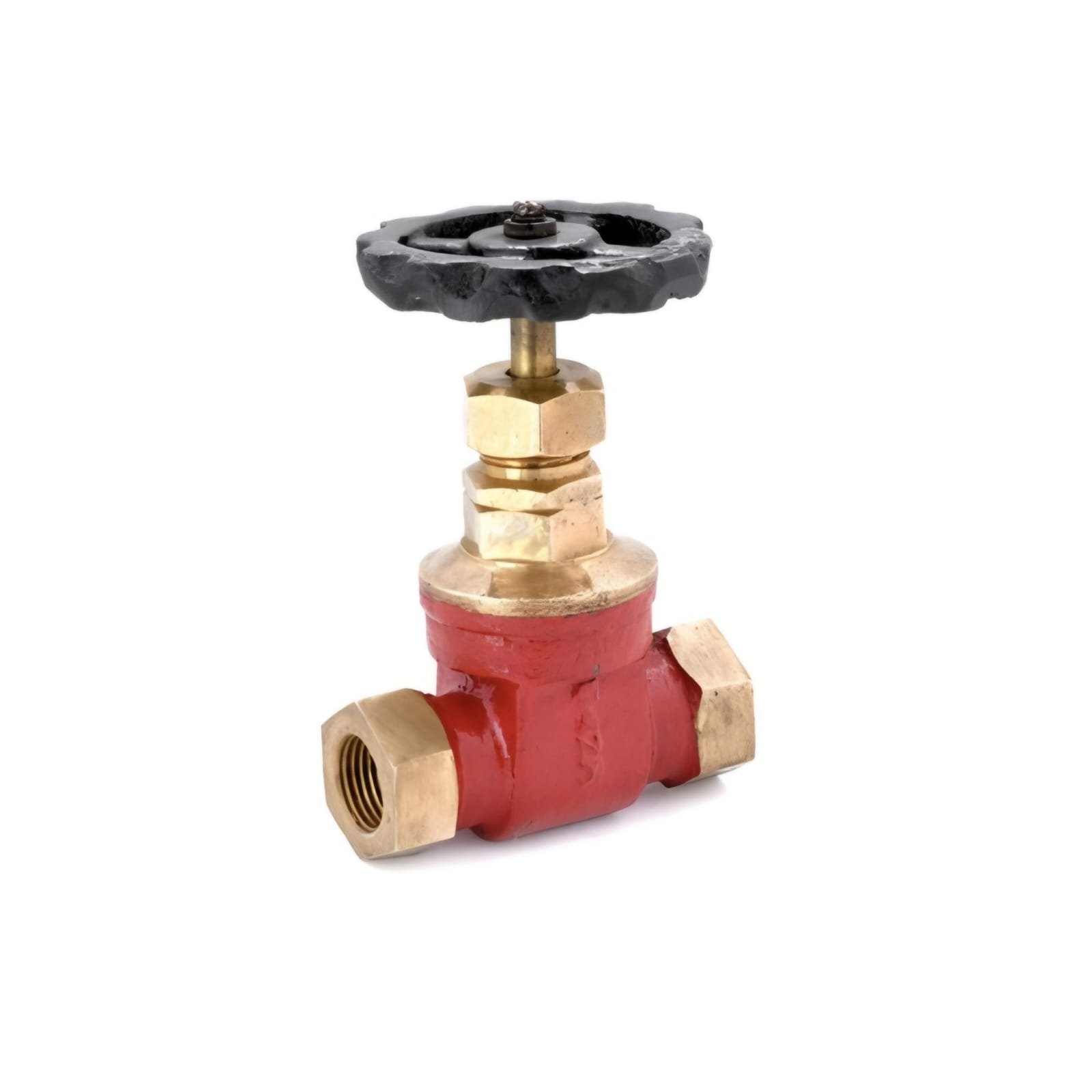

The IS-7 Bronze Gate Valve is designed according to IS-778:1971 standards and is classified as Class-3. This valve is constructed from GM bronze (IS:318 Gr.LTB2) and features a screwed-in bonnet, inside screw mechanism, and a non-rising stem. It has an integral seat and a solid wedge for efficient flow control. The trim is made of Cu-Alloy, and the gland packing is composed of PTFE. The valve ends are designed with screwed female threads that conform to IS:554 Parallel specifications.
| Specification | Details |
|---|---|
| Product Name | IS-7 Bronze Gate Valve |
| Product Standard | IS-778:1971 |
| Pressure/Class/Rating | Class-3 |
| Body Material | GM (IS:318 Gr.LTB2) |
| Description | Screwed in Bonnet, Inside Screw, Non-Rising Stem |
| Type of Seat | Integral Seat |
| Type of Wedge | Solid Wedge |
| Trim | Cu-Alloy |
| Gland Packing | PTFE |
| End Details | Screwed female threads to IS:554 Parallel |
