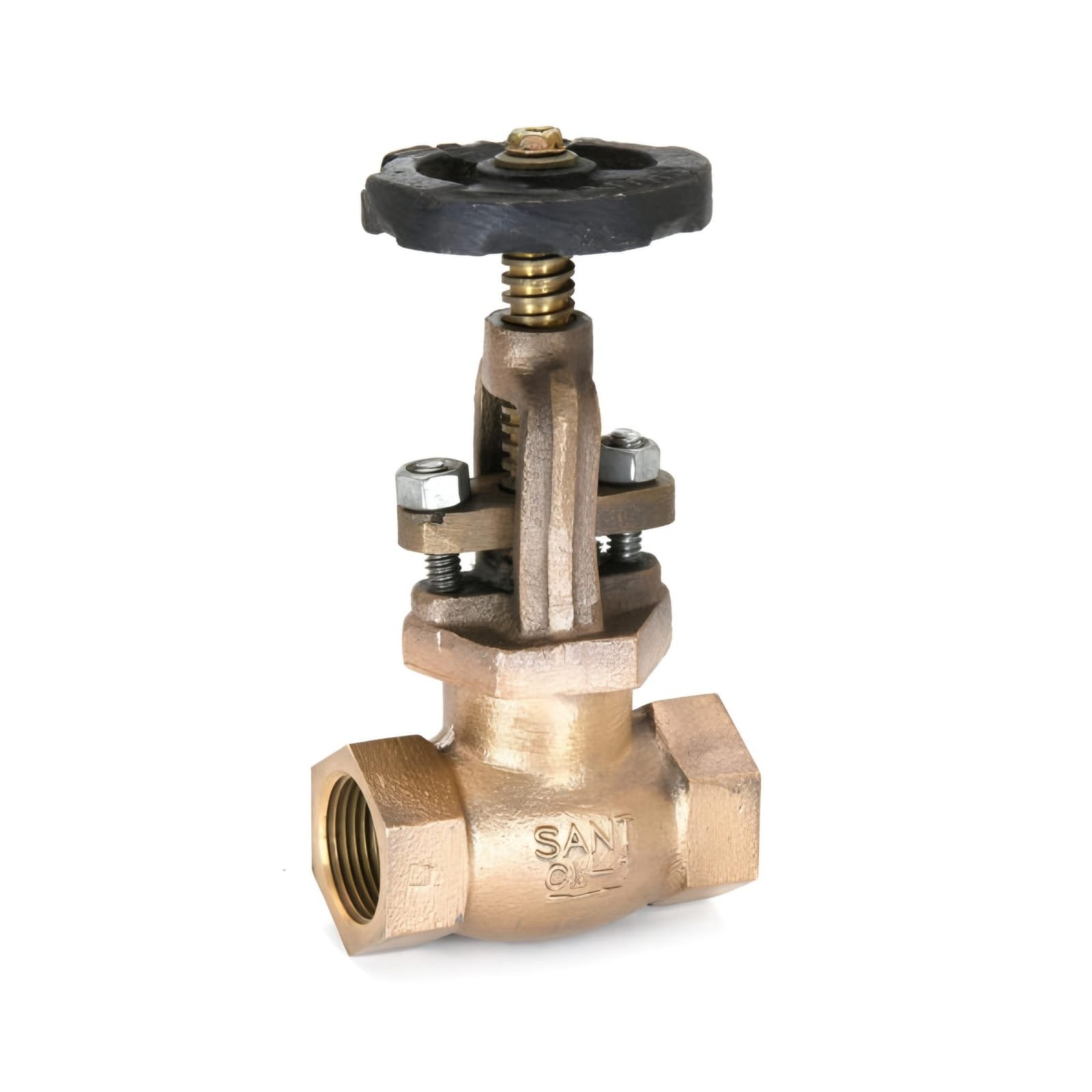

The IS-34 Bronze Globe Valve is designed in accordance with IS-778 standards and is rated as Class-1 for pressure applications. This valve is constructed from bronze (IS:318 Gr.LTB2), which provides excellent durability and resistance to corrosion. It features a screwed-in bonnet, an outside screw and yoke type, and a rising stem, ensuring precise control of fluid flow. The integral seat design enhances the valve’s reliability. The trim is made of Cu-Alloy, which adds to the valve’s robustness. The gland packing utilizes PTFE, offering superior sealing capabilities. The valve ends are screwed female threads, conforming to IS-554 Parallel.
| Specification | Details |
|---|---|
| Product Name | Bronze Globe Valve |
| Product Standard | As per IS-778 |
| Pressure/Class/Rating | Class-1 |
| Body Material | Bronze (IS:318 Gr.LTB2) |
| Description | Screwed In Bonnet, Outside Screw & Yoke Type, Rising Stem |
| Type of Seat | Integral Seat |
| Trim | Cu-Alloy |
| Gland Packing | PTFE |
| End Details | Screwed female threads to IS-554 Parallel |
