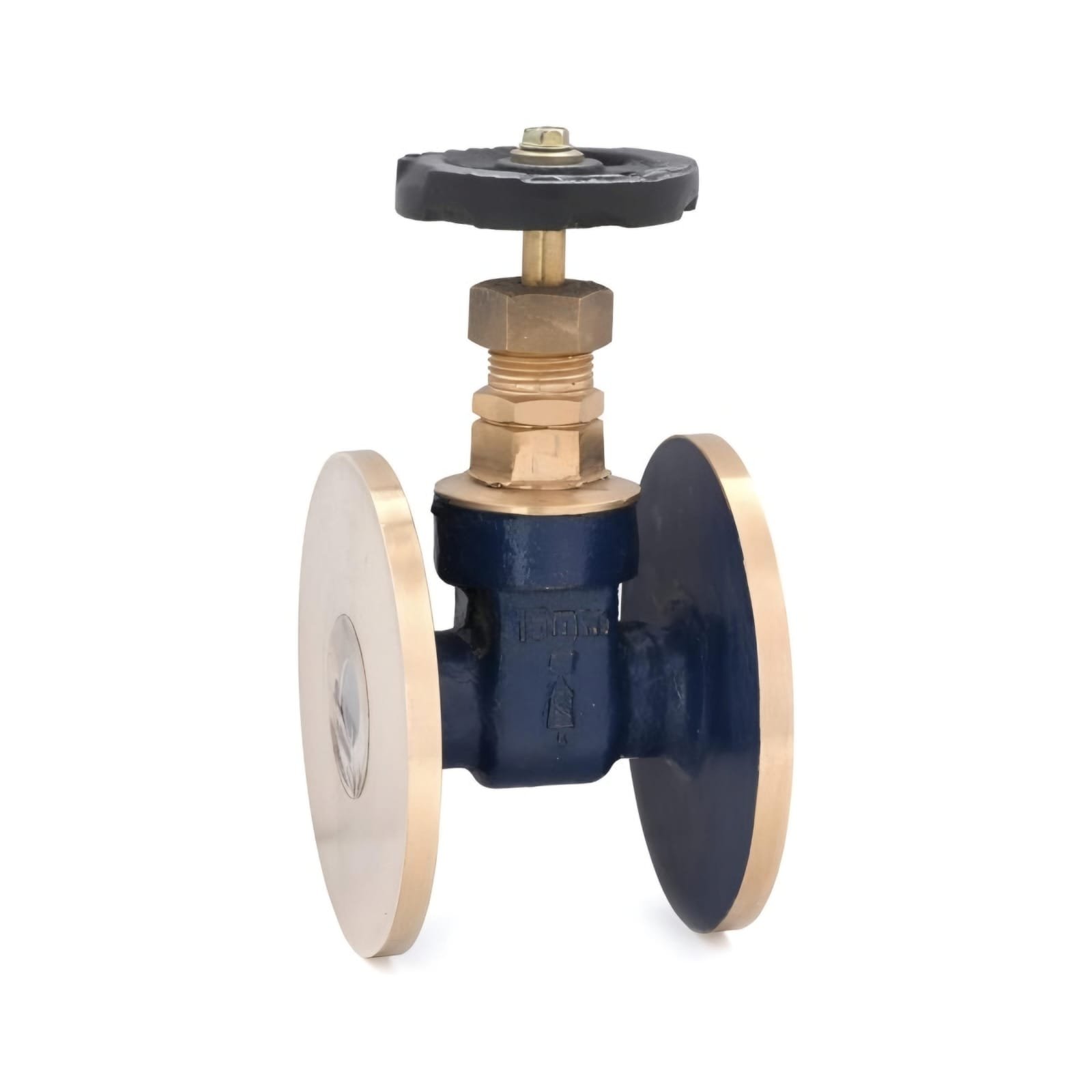

The IS-2 Bronze Gate Valve by Sant is engineered according to IS-778 standards, providing reliable performance for various fluid control applications. This valve features a screwed-in bonnet, an inside screw mechanism, and a non-rising stem. It is constructed from Gun Metal (IS:318 Gr.LTB2) and is rated for Class-1 pressure. The integral seat and solid wedge ensure effective sealing and robust operation. The valve includes a copper alloy trim and PTFE gland packing for durability. The end details consist of flanges as per IS:778 Class-1 F.F., undrilled.
| Specification | Details |
|---|---|
| Product Name | IS-2 Bronze Gate Valve |
| Product Standard | IS-778 |
| Pressure/Class/Rating | Class-1 |
| Body Material | Gun Metal (IS:318 Gr.LTB2) |
| Description | Screwed in Bonnet, Inside Screw, Non-Rising Stem |
| Type of Seat | Integral Seat |
| Type of Wedge | Solid Wedge |
| Trim | Cu-Alloy |
| Gland Packing | PTFE |
| End Details | Flanges as per IS:778 Class-1 F.F., undrilled |
