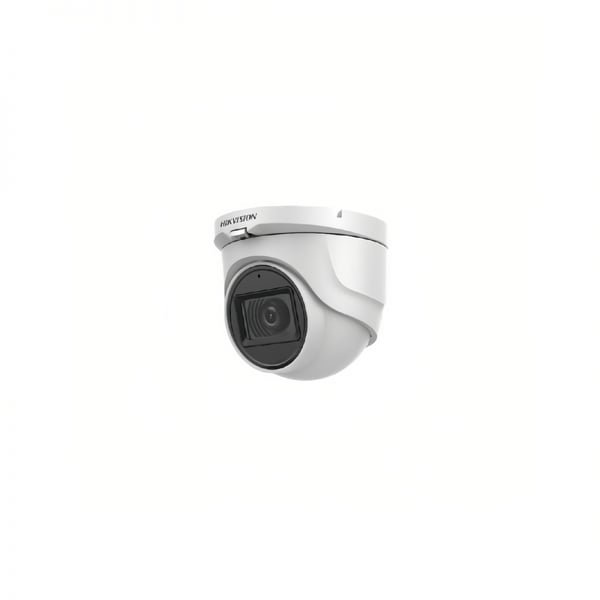

The camera features a 2 MP CMOS image sensor with a maximum resolution of 1920 (H) × 1080 (V). It has a minimum illumination of 0.01 Lux at F2.0 with AGC ON and provides clear images even in low-light conditions. With a flexible angle adjustment, it allows for panning from 0 to 360°, tilting from 0 to 75°, and rotating from 0 to 360°, ensuring comprehensive coverage. The camera supports both PAL and NTSC signal systems and offers various fixed lens options including 2.8 mm, 3.6 mm, and 6 mm. It also features image enhancements like brightness, sharpness, mirror, and Smart IR for optimal image quality. With its durable metal construction and IP67 protection rating, it is suitable for outdoor installations. The camera operates reliably in temperatures ranging from -40 °C to 60 °C (-40 °F to 140 °F) and is equipped with IR LEDs for night vision up to 30 meters. Additionally, it supports multiple video output formats and comes with a 12 VDC power supply for seamless integration into existing surveillance systems.
Camera Specifications | |
---|---|
Image Sensor | 2 MP CMOS |
Max. Resolution | 1920 (H) × 1080 (V) |
Min. Illumination | 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR |
Shutter Time | PAL: 1/25 s to 1/50,000 s |
NTSC: 1/30 s to 1/50,000 s | |
Day & Night | ICR |
Angle Adjustment | Pan: 0 to 360° |
Tilt: 0 to 75° | |
Rotation: 0 to 360° | |
Signal System | PAL/NTSC |
Lens | 2.8 mm, 3.6 mm, 6 mm fixed lens |
Focal Length & FOV | 2.8 mm: HFOV 106.4°, VFOV 57.9°, DFOV 124.6° |
3.6 mm: HFOV 79.6°, VFOV 43.5°, DFOV 93.7° | |
6 mm: HFOV 51.9°, VFOV 30°, DFOV 58.8° | |
Lens Mount | M12 |
Image Parameters Switch | STD/HIGH-SAT |
Image Settings | Brightness, Sharpness, Mirror, Smart IR |
