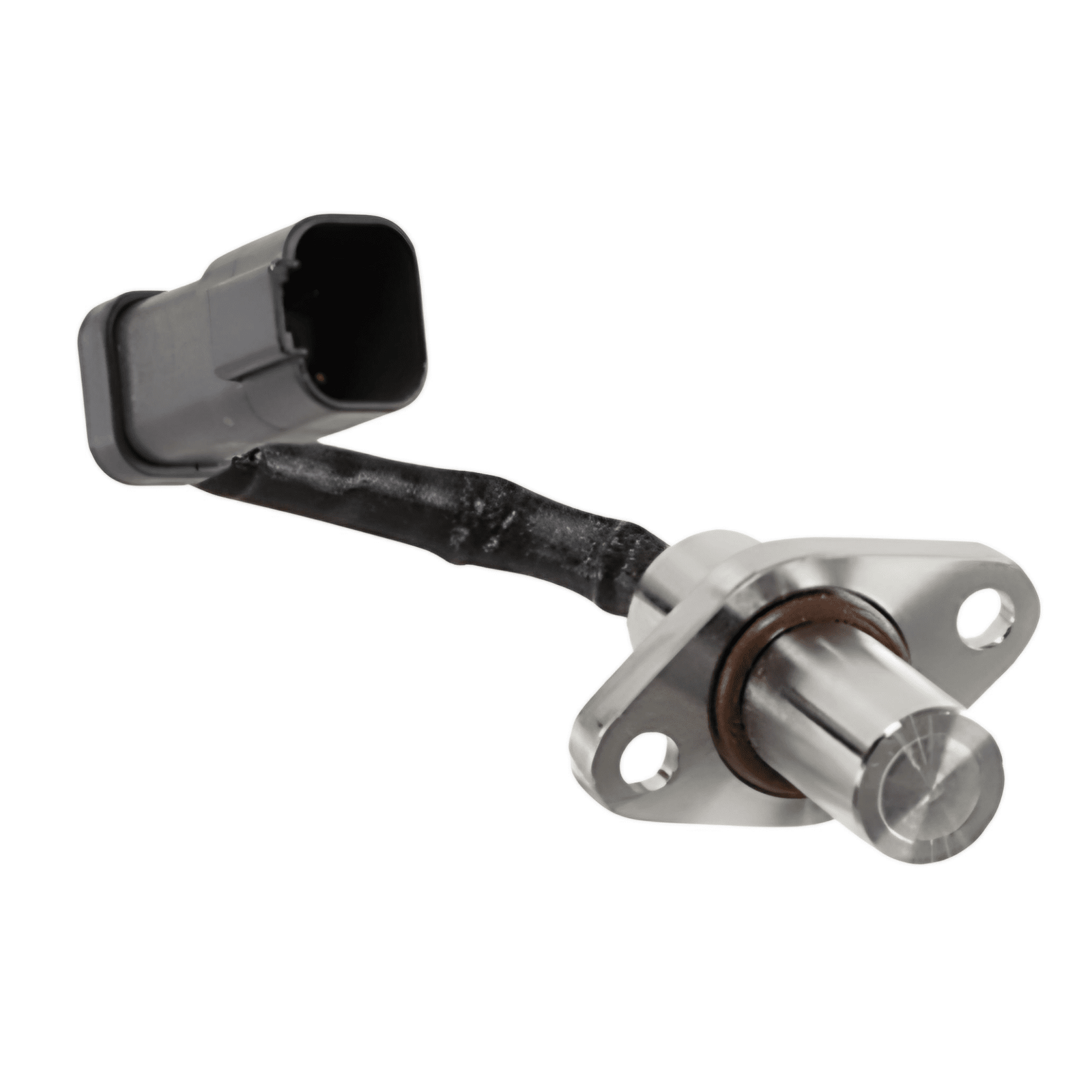

The Cat Dual Hall Speed Sensor, model 264-0148, is designed to provide precise speed and direction measurements. This sensor features two Hall elements that create waveforms spaced 90° apart, enabling the detection of direction by determining the phase shift between the two output signals. It is ideal for applications requiring zero or near-zero speed detection. The phase shift between the two output signals (Signal A and Signal B) indicates the direction of movement. Capable of detecting speeds down to zero, providing high accuracy in a variety of applications.
| Feature | Description |
|---|---|
| Brand | Cat |
| Model | 264-0148 |
| Type | Dual Hall Speed Sensor |
| Function | Measures speed and direction with dual Hall elements |
| Output | Two outputs, 4 wires (power, return, signal A, signal B) |
| Detection Capability | Zero and near-zero speed detection |
| Housing Options | Fixed nose lengths only |
| Bore Diameter | 0.71 inches |
| Overall Length | 2.36 inches |
| Wire Length | 3.94 inches |
| Insert Length | 1.22 inchesv |
