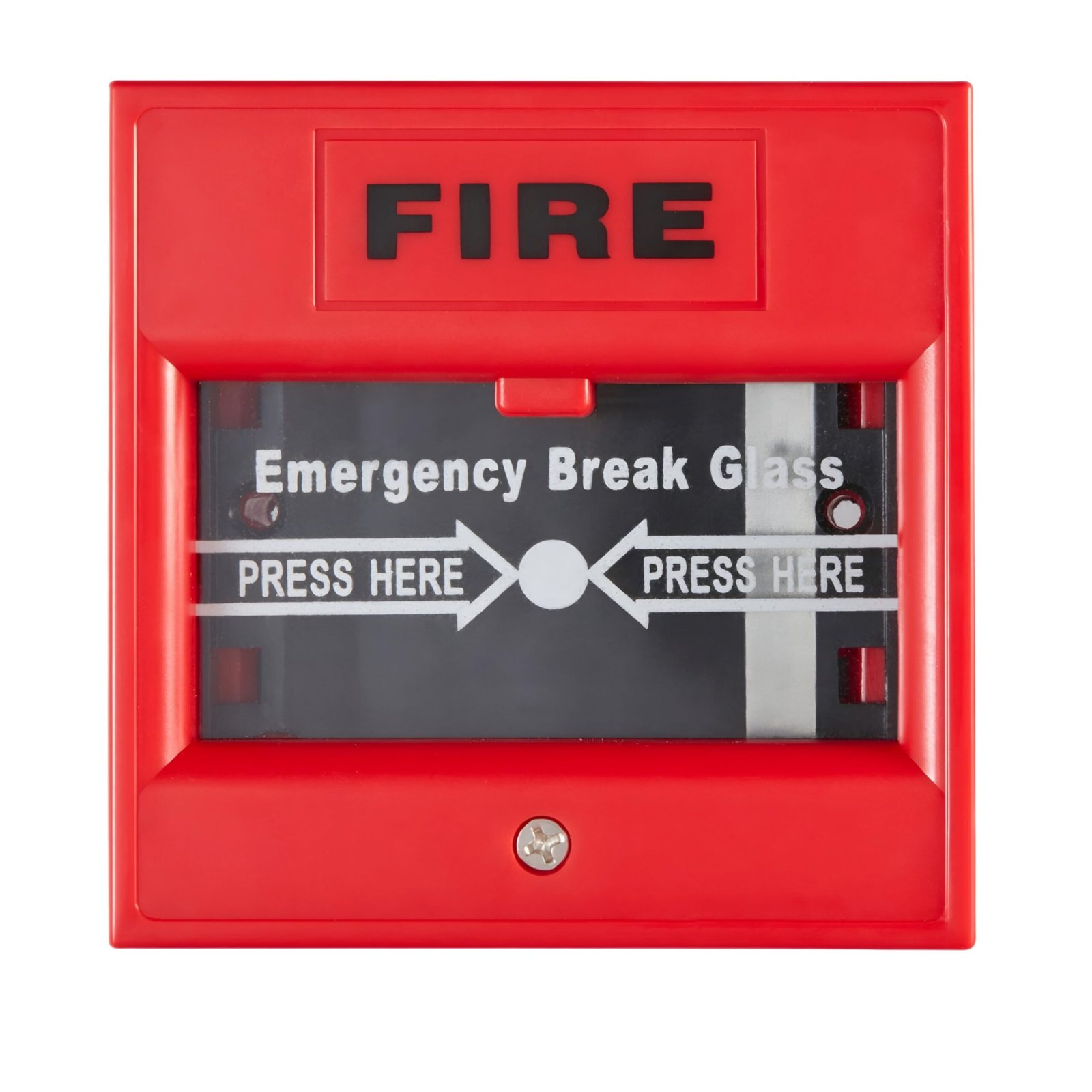

The DS-K7PEB(O-NEU) Red-Emergency Break Glass is designed for use in emergency and exit door applications. Constructed from fireproof material with a sandblast finish, it ensures durability and safety in critical situations. The device offers versatile integration with NO/NC/COM output contacts and supports a maximum current rating of 3A @ 36VDC. It features dimensions of 86×86×50mm and is available in red or green. Suitable for various environments, it operates within a temperature range of -10℃ to +55℃ (14°F to 131°F) and supports humidity levels from 0% to 95%. Optional accessories include a glass or transparent cover, enhancing its functionality and adaptability.
| Feature | Description |
|---|---|
| Suitable for Door | Exit door, emergency door |
| Material Selection | Fireproof material, sandblast finished |
| Standard Structure | Fireproof material |
| Optional Accessories | Glass/transparent cover |
| Output Contact | NO/NC/COM |
| Current Rating | 3A @ 36VDC Max |
| Dimensions (L×W×H) | 86×86×50mm |
| Color | Red or green selectable |
| Operating Temperature | -10℃ to +55℃ (14°F to 131°F) |
| Operating Humidity | 0% to 95% (relative humidity) |
| Weight | 0.2kg |
