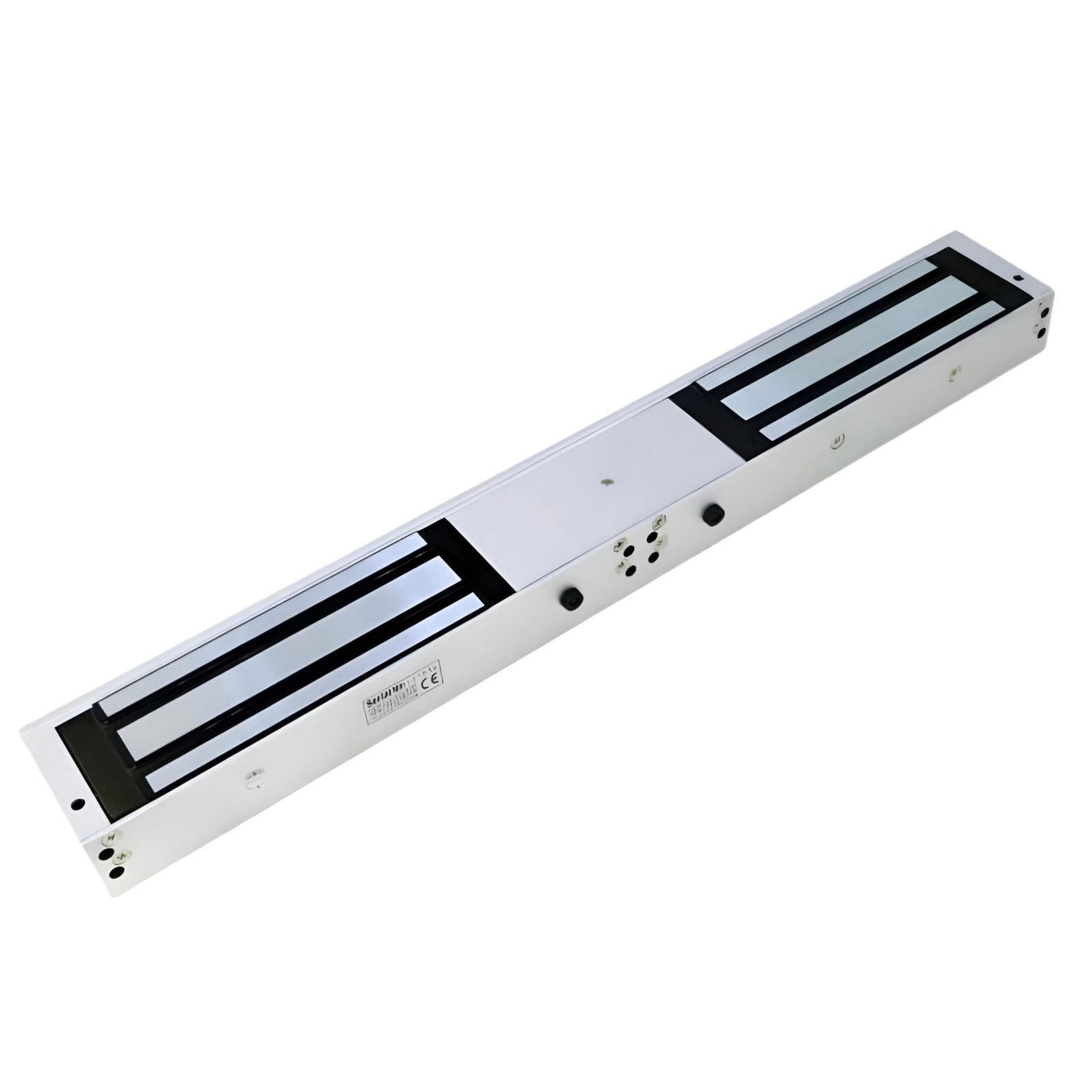

The DS-K4H450D Pro Series Magnetic Lock is engineered to provide high-security solutions with its robust features. Supporting a static linear thrust of 500 kg (1102.5 lbs) per lock, it ensures reliable locking mechanisms. Offering flexibility, the power supply can be either 12VDC or 24VDC + 10%, accommodating various installation requirements. Designed for wooden, glass, and metal doors, its LED indicator simplifies monitoring by displaying the lock status with green indicating locked and red for unlocked. Additionally, it provides a signal output for door lock status, enhancing overall security measures.
| Feature | Details |
|---|---|
| Thrust | 500 kg (1102.5 lbs) per lock |
| Power Supply | 12/24 VDC + 10% |
| 12 VDC/420 mA × 2 | |
| 24 VDC/210 mA × 2 | |
| Dimensions | Lock Body: 530 mm × 71.8 mm × 38.8 mm (20.86” × 2.83” × 1.53”) |
| Armature Plate: 185 mm × 60 mm × 13 mm (7.28” × 2.36” × 0.51”) | |
| Weight | 9.0 kg (19.84 lb) |
| Signal Output | Dry Contact Signal Output; Support Maximum Power Rate of 3 A |
| NO Output While Locking and NC Output While Unlocking | |
| Maximum Holding Force | 500 kg (1102.5 lbs) per lock |
| Suitable Door | Wooden Door, Glass Door, Metal Door |
