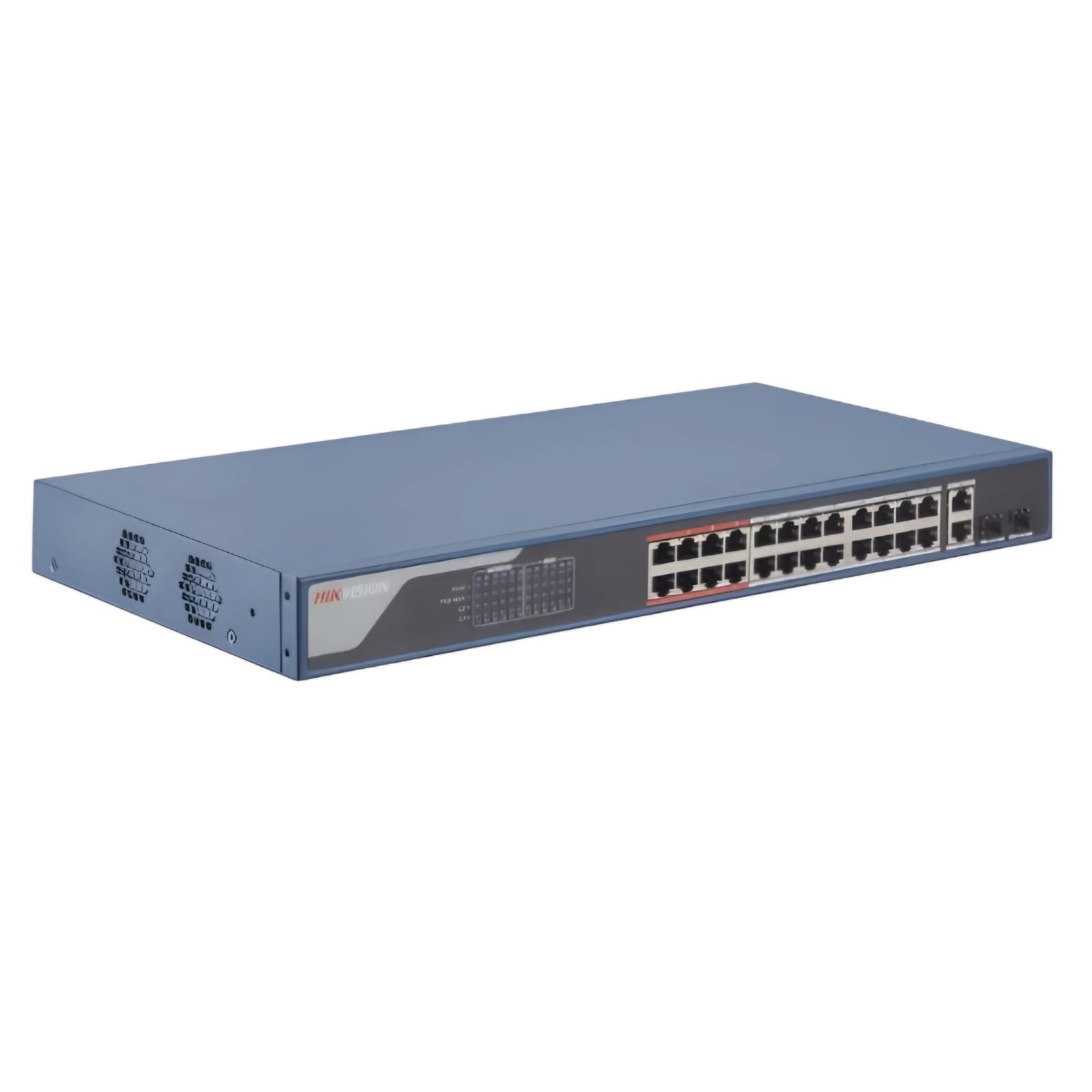

The DS-3E1326P-EI/M(O-STD) is a 24 Port Fast Ethernet Smart POE Switch designed for efficient and reliable networking. Featuring 24 × 100 Mbps PoE RJ45 ports and 2 × gigabit combo ports, it supports a wide range of devices. It adheres to the IEEE 802.3at/af standard, ensuring broad compatibility for PoE ports. This switch includes advanced features like network topology management, alarm push, and network health monitoring, making it ideal for comprehensive network oversight. It also provides robust 6 KV surge protection for PoE ports to safeguard against power surges. Additionally, the switch supports AF/AT cameras up to 300 meters in extend mode, enhancing its usability in large setups.
Feature | Description |
---|---|
PoE Ports | 24 × 100 Mbps PoE RJ45 ports |
Combo Ports | 2 × gigabit combo ports |
PoE Standard | IEEE 802.3at/af |
Advanced Features | Network topology management, alarm push, network health monitor |
Surge Protection | 6 KV |
AF/AT Camera Reach | Up to 300 meters in extend mode |
Shell Material | Metal |
Net Weight | 2.83 kg (6.24 lb) |
Gross Weight | 3.80 kg (8.38 lb) |
Dimensions (W × H × D) | 440.00 mm × 44.00 mm × 221.00 mm (17.32” × 1.73” × 8.70”) |
Operating Temperature | 0 °C to 45 °C (0 °F to 113 °F) |
Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
Operating Humidity | 5% to 95% (no condensation) |
Relative Humidity | 5% to 95% (no condensation) |
Power Supply | 100-240 VAC, 50/60 Hz, Max. 6.5 A |
Installation Mode | Rack (equipped with mounting ears) |
Max. Power Consumption | 400 W |
Power Consumption In Idle | 30 W |
Surge Protection | 6 KV |
