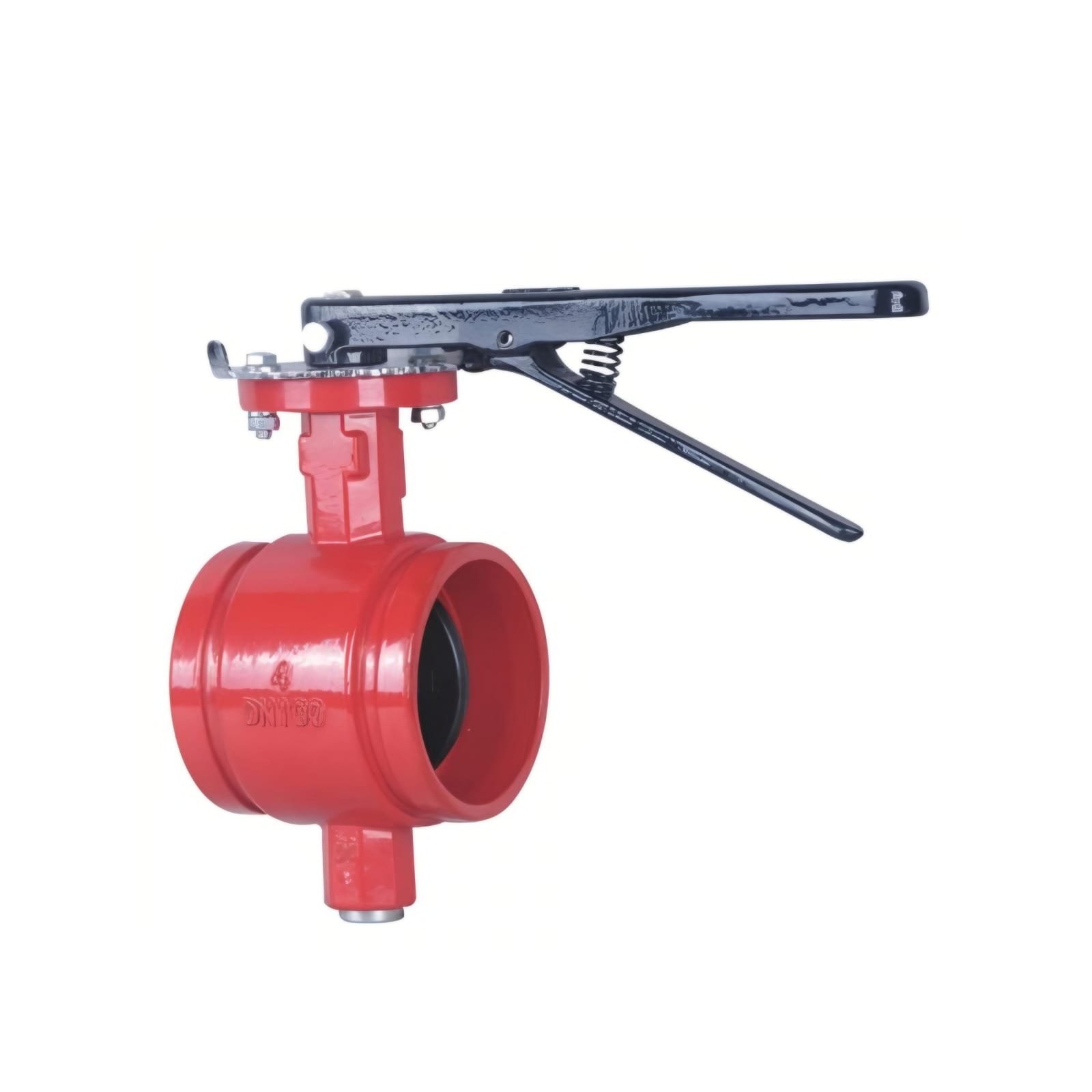

The D81X4 and D381X4 Grooved Butterfly Valves are designed to meet high performance and reliability standards. These valves conform to the BS EN 593 design standard and feature grooved connection ends per ISO 6182, ensuring compatibility with various piping systems. They include a top flange standard conforming to ISO 5211, with stem drive options available in keys, parallel or diagonal square, or flat head. The valves are suitable for working pressures up to PN16 and operate effectively within a temperature range of 0°C to 100°C. They come with a fusion-bonded epoxy coating in accordance with ANSI/AWWA C550 or optional painting upon request for additional customization.
| Specification | Details |
|---|---|
| Product Name | D81X4 and D381X4 Grooved Butterfly Valves |
| Design Standard | BS EN 593 |
| Connection Ends | Groove to ISO 6182 |
| Top Flange Standard | ISO 5211 |
| Stem Drive Options | Keys, Parallel or Diagonal Square, Flat Head |
| Working Pressure | PN16 |
| Temperature Range | 0°C – 100°C |
