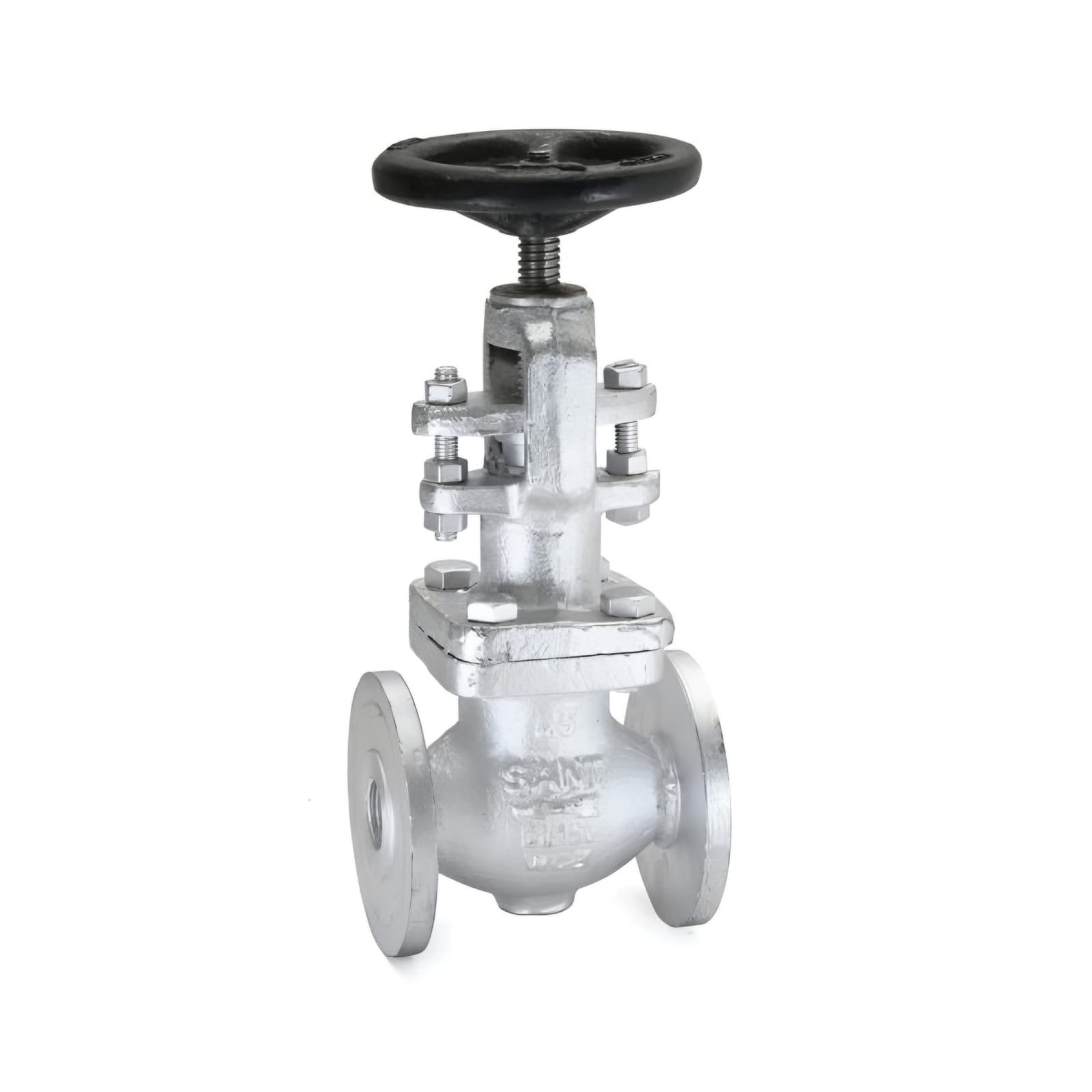

The SANT CS-9 Cast Steel Globe Valve is engineered to meet the standards of BS 1873 and is rated for Class 150 pressure applications, making it suitable for various industrial environments. The valve is constructed from cast carbon steel (CCS, ASTM A216 Gr.WCB), ensuring robust performance and durability. Featuring a bolted cover, an outside screw and yoke type, and a rising stem, this valve offers precise flow regulation and control. Both the seat and disc are renewable, enhancing the valve’s service life and ease of maintenance. The valve trim includes a stem made from stainless steel AISI-410 and a yoke bush made from aluminum bronze. The gland packing is composed of expanded pure flexible graphite, providing excellent sealing capabilities. The valve ends are designed with flanges that conform to ANSI B 16.5 Class 150 RF, undrilled, for secure and versatile connections.
| Specification | Details |
|---|---|
| Product Name | Cast Steel Globe Valve |
| Product Standard | BS 1873 |
| Pressure/Class/Rating | Class 150 |
| Body Material | CCS (ASTM A216 Gr.WCB) |
| Description | Bolted Cover, Outside Screw & Yoke Type, Rising Stem |
| Type of Seat | Renewable seat |
| Type of Disc | Renewable disc |
| Trim | Stem SS AISI-410 |
| Yoke Bush | Aluminum Bronze |
| Gland Packing | Expanded Pure Flexible Graphite |
| End Details | Flanges as per ANSI B 16.5 Class 150 R.F. Undrilled |
