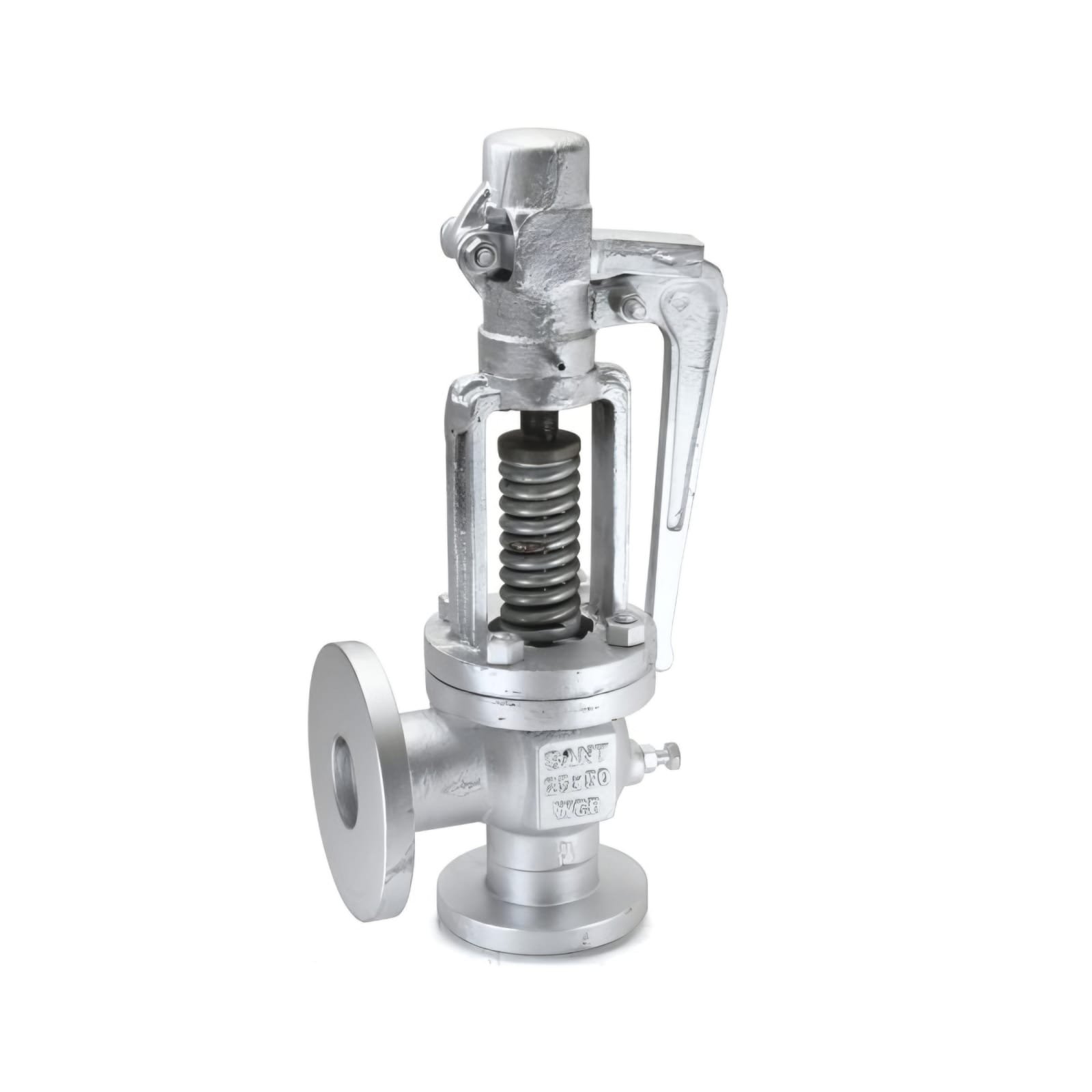

The CS-12 Cast Steel Single Post Full Lift Safety Valve, manufactured by Sant, is designed with a right angle pattern. The valve’s body is made from cast carbon steel (CCS) compliant with ASTM A-216 Gr. WCB standards. This safety valve is spring-loaded and features a full lift mechanism. It includes a renewable seat and a renewable disc, with trim components made of stainless steel to AISI-304 specifications. The inlet flanges are designed to meet BS 10 Table-H standards, while the outlet flanges comply with BS 10 Table-E standards.
| Specification | Details |
|---|---|
| Product Name | CS-12 Cast Steel Single Post Full Lift Safety Valve |
| Type of Pattern | Right Angle |
| Body Material | CCS (ASTM A-216 Gr. WCB) |
| Product Description | Spring Loaded Full Lift |
| Type of Seat | Renewable Seat |
| Type of Disc | Renewable Disc |
| Trim | SS to AISI-304 |
| End Details | Inlet Flanges to BS 10 Table-H |
| Outlet Flanges to BS 10 Table-E |
