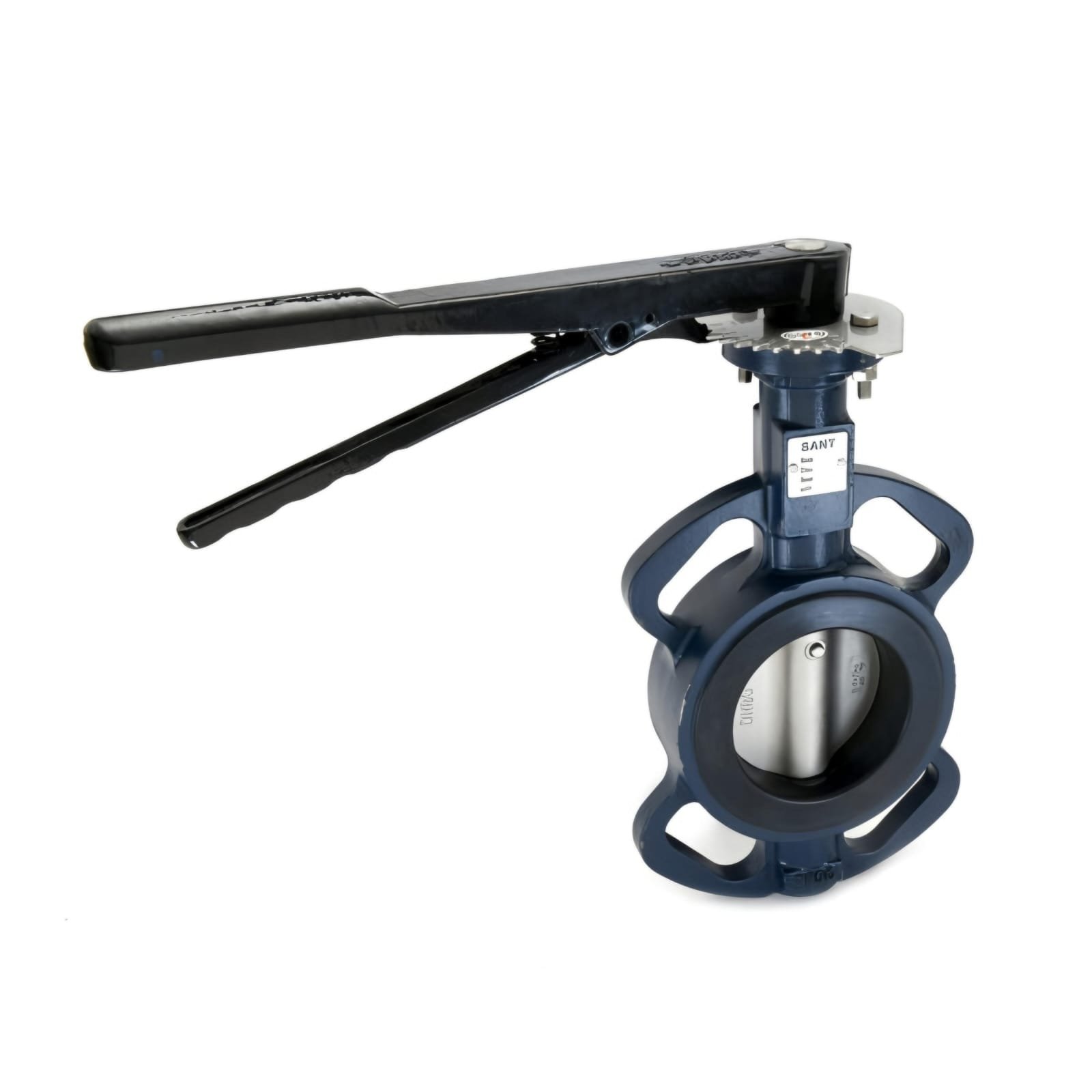

The CR-28D Ductile Iron Butterfly Valve, branded as ‘SANT,’ is a high-quality wafer-type valve designed for reliable performance in various applications. Made from SG Iron to IS:1865, it is built to withstand pressure ratings of PN 25. The valve features a wafer-type pattern and is equipped with nitrile or EPDM lining for the seat, ensuring a robust seal. The disc is constructed from SS (CF8) with a trim made of SS AISI-410. It is designed for insertion between flanges, conforming to BS 10 Table D/E or ASME B 16.1, Class 125, providing versatile installation options.
| Specification | Details |
|---|---|
| Product Name | CR-28D Ductile Iron Butterfly Valve |
| Type of Pattern | Wafer Type |
| Pressure / Class / Rating | PN 25 |
| Body Material cum Standard | SG Iron to IS:1865 |
| Description | Wafer Type |
| Type of Seat | Nitrile / EPDM Lining |
| Type of Disc | SS Seat (CF8) |
| Trim | SS AISI-410 |
| End Details | Suitable for insertion between Flanges as per BS 10 Table D/E or ASME B 16.1, Class 125 |
