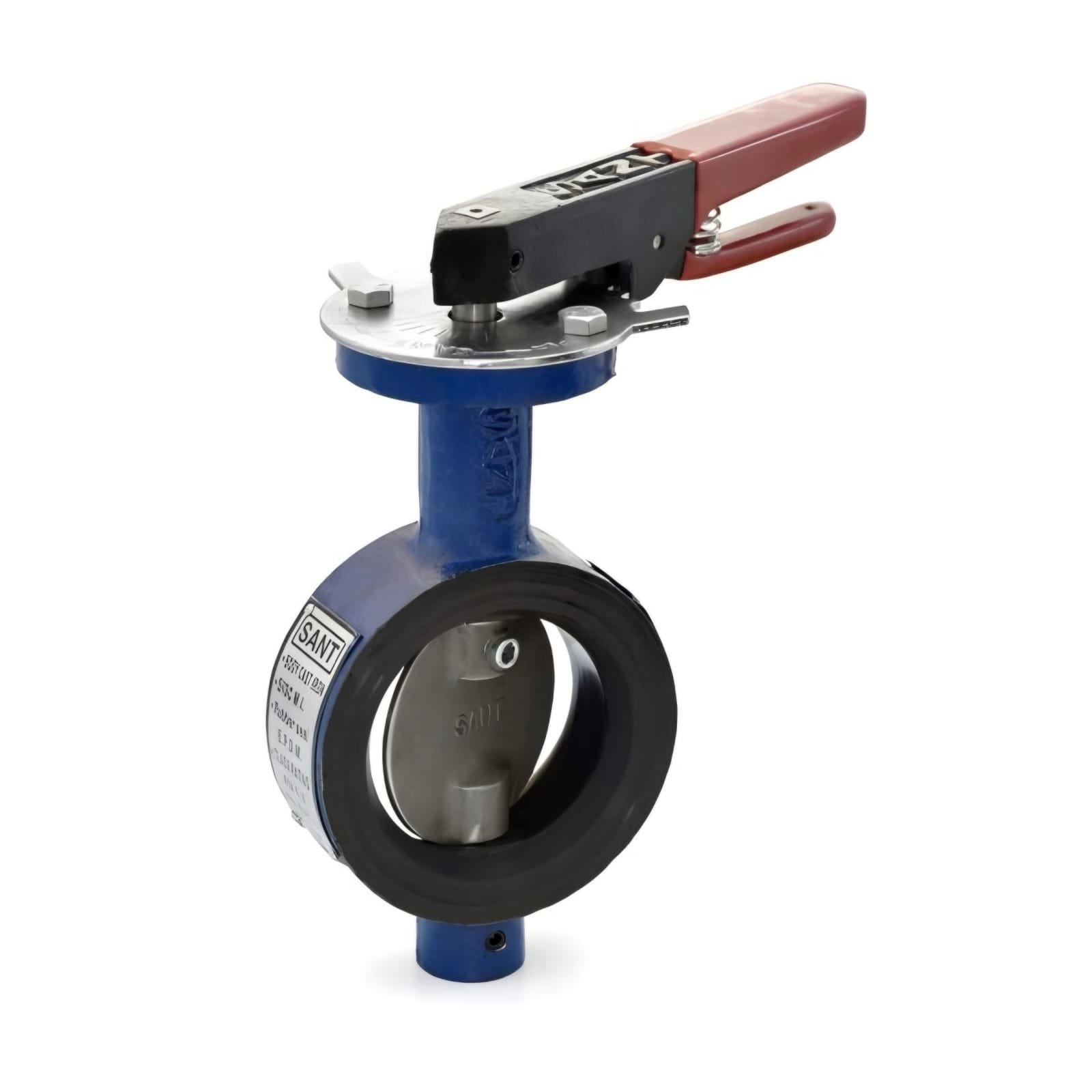

The CR-27A Cast Iron Butterfly Valve by Sant is engineered for high-performance fluid control applications. This wafer-type valve is constructed from cast iron (IS:210 Gr.FG200) and is rated for PN 20 pressure class. It features a Nitrile or EPDM lining for the seat, ensuring a robust seal and long service life. The disc is made from CF8 stainless steel, with trim components in SS AISI-410, providing durability and corrosion resistance. The valve is designed for insertion between flanges in accordance with BS 10 Table D/E or ASME B 16.1, Class 125. For sizes above 150mm, a gear system is included to facilitate smooth operation.
| Specification | Details |
|---|---|
| Product Name | CR-27A Cast Iron Butterfly Valve |
| Type of Pattern | Wafer Type |
| Pressure/Class/Rating | PN 20 |
| Body Material | Cast Iron to IS:210 Gr.FG200 |
| Type of Seat | Nitrile / EPDM Lining |
| Type of Disc | SS Seat CF8 |
| Trim | SS AISI-410 |
| End Details | Suitable for insertion between flanges as per BS 10 Table D/E or ASME B 16.1, Class 125 |
| Note | Gear system provided for sizes above 150mm |
