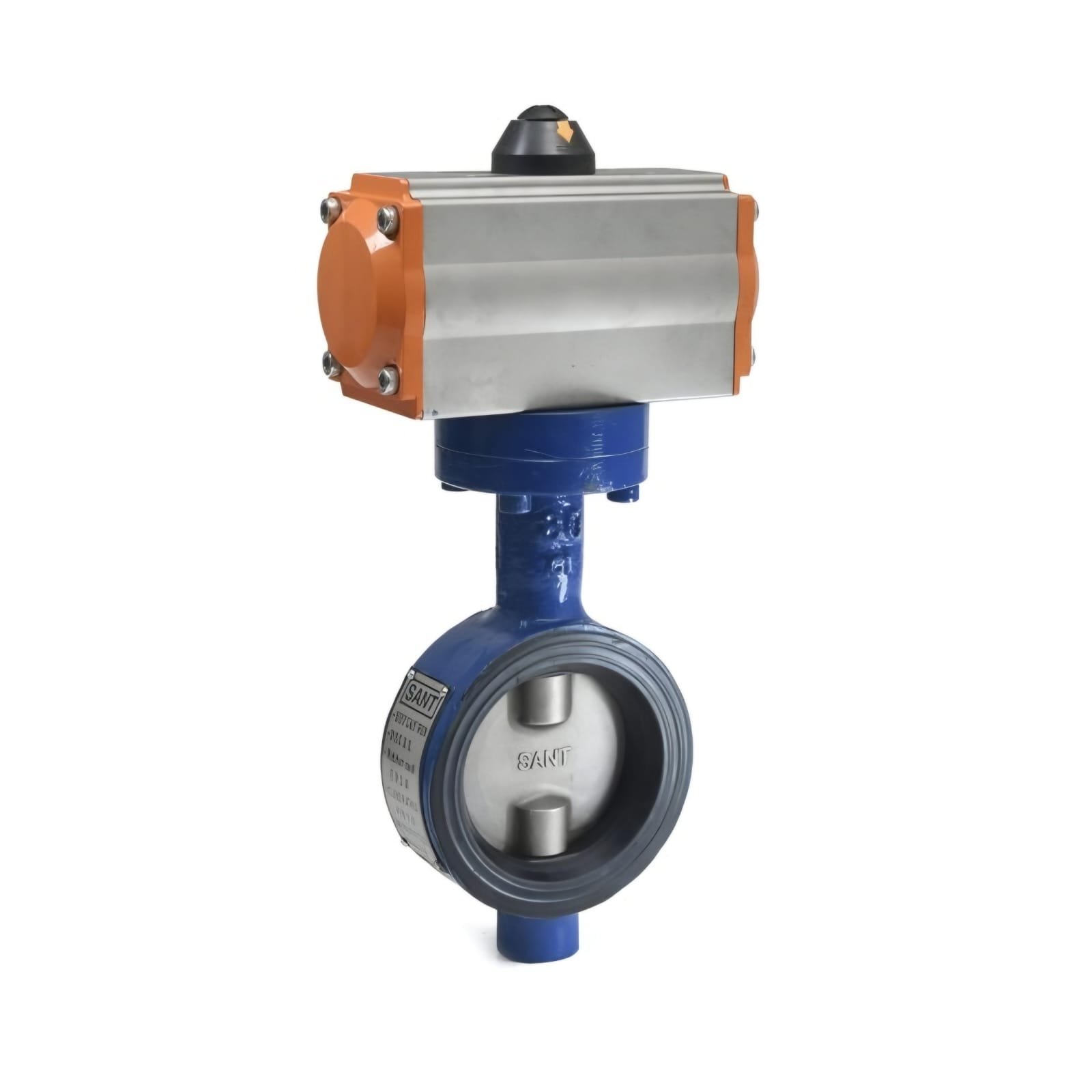

The CIBFP Cast Iron Butterfly Valve with Pneumatic Actuator by Sant is engineered for high efficiency and reliability in fluid control applications, accommodating pressure ratings of PN 10 and PN 16. Constructed from Cast Iron (CI) to IS:210 Gr FG200, this valve features a wafer-type design for ease of installation. It is equipped with Nitrile/EPDM lining for enhanced sealing and durability. The disc is made from stainless steel CF8, while the stem is constructed from AISI-410 stainless steel. The valve is operated by a pneumatic actuator, providing robust and responsive control. It is suitable for insertion between flanges according to BS 10 Table F/D/E or ASME B 16.1 Class-125 standards.
| Specification | Details |
|---|---|
| Product Name | CIBFP C.I. Butterfly Valve with Pneumatic Actuator |
| Type of Pattern | Wafer Type |
| Pressure/Class/Rating | PN 10 / PN 16 |
| Body Material | Cast Iron to IS:210 Gr FG200 |
| Type of Seat | Nitrile/EPDM Lining |
| Type of Disc | Stainless Steel CF8 |
| Stem | AISI-410 |
| End Details | Suitable for insertion between flanges as per BS 10 Table F/D/E or ASME B 16.1 Class-125 |
