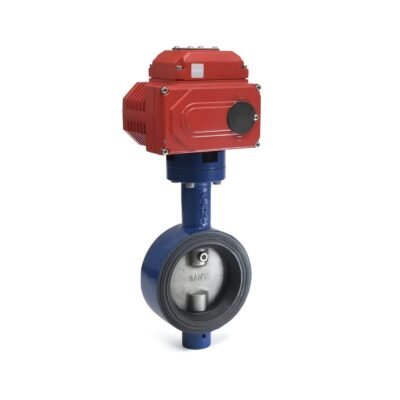

The CIBFE Cast Iron Butterfly Valve with Electric Actuator from ‘Sant’ is a high-performance valve designed for effective control in fluid systems with pressure ratings of PN 10 and PN 16. Constructed from Cast Iron (CI) to IS:210 Gr FG200, this valve features an EPDM lining for enhanced sealing and corrosion resistance. The disc is made from stainless steel (CF8), and the stem is constructed from AISI-410 stainless steel. This valve is equipped with an electric actuator for precise and automated control. It is designed for insertion between flanges according to ASME B 16.1 or Class 125 standards.
| Specification | Details |
|---|---|
| Product Name | CIBFE C.I. Butterfly Valve with Electric Actuator |
| Type of Pattern | Wafer Type |
| Pressure/Class/Rating | PN 10 / PN 16 |
| Body Material | Cast Iron to IS:210 Gr FG200 |
| Type of Lining | EPDM |
| Type of Disc | SS CF8 |
| Stem | AISI-410 |
| End Details | Suitable for insertion between flanges as per ASME B 16.1 or Class-125 |
