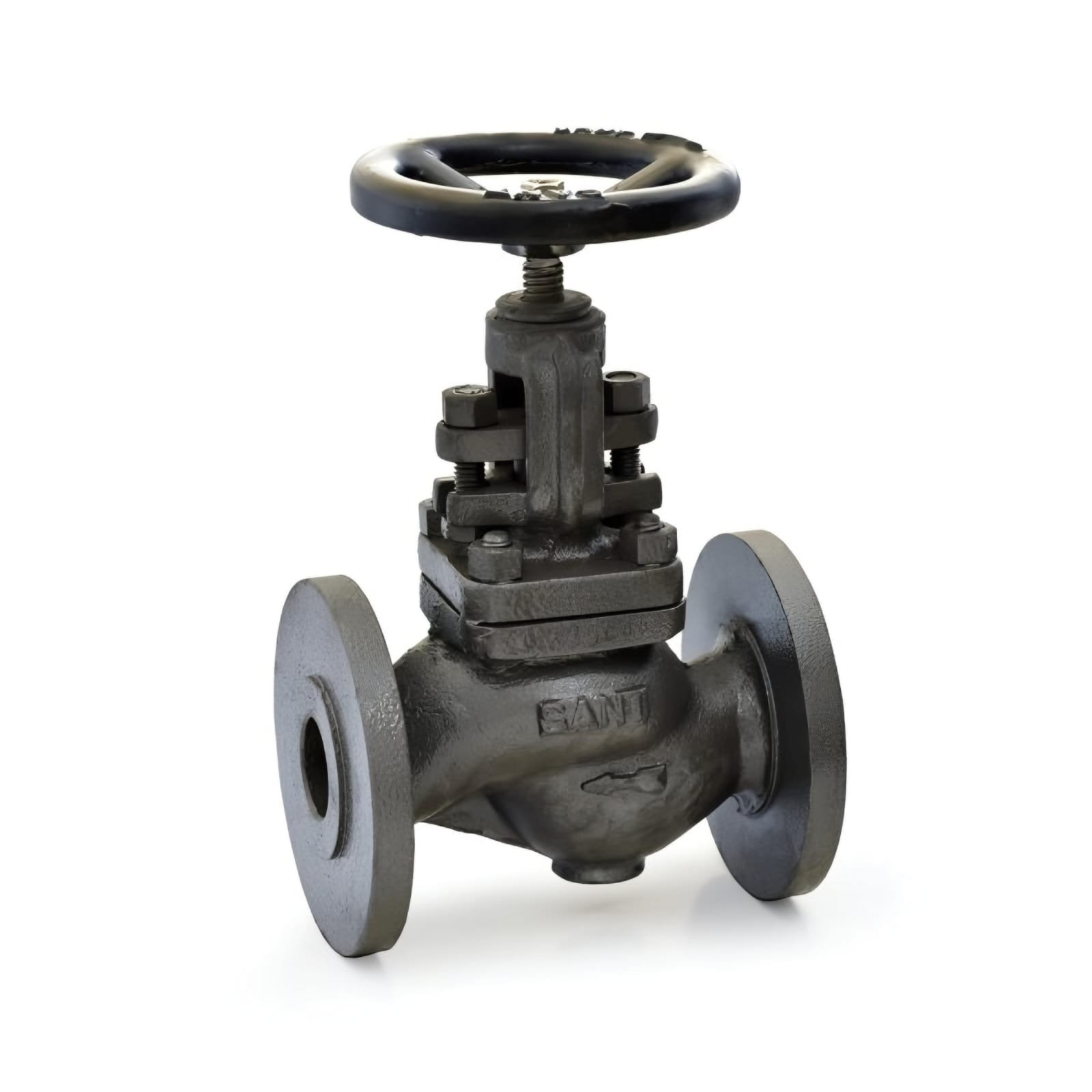

The CI-1A Cast Iron Globe Valve adheres to BS:5152 and DIN 86251 standards, featuring a straight pattern design. It is rated for PN 16 pressure class applications, making it suitable for a variety of industrial settings. The body is made from cast iron (IBR 86 to 93 Gr.A), ensuring durability and strength. This valve includes a bolted bonnet and an outside screw and yoke type with a rising stem, offering precise control over fluid flow. Both the seat and disc are renewable, enhancing the valve’s longevity and ease of maintenance. The trim is made from stainless steel AISI-410, and the gland packing utilizes expanded pure flexible graphite for effective sealing. The valve ends are equipped with flanges conforming to DIN 2533 RF (PN 16), undrilled, providing a reliable and adaptable connection.
| Specification | Details |
|---|---|
| Product Name | Cast Iron Globe Valve |
| Product Standard | BS:5152 / DIN 86251 |
| Type of Pattern | Straight Pattern |
| Pressure/Class/Rating | PN 16 |
| Body Material | Cast Iron IBR 86 to 93 Gr.A |
| Description | Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem |
| Type of Seat | Renewable seat |
| Type of Disc | Renewable disc |
| Trim | SS AISI-410 |
| Gland Packing | Expanded Pure Flexible Graphite |
| End Details | Flanges as per DIN 2533 RF (PN 16) Undrilled |
