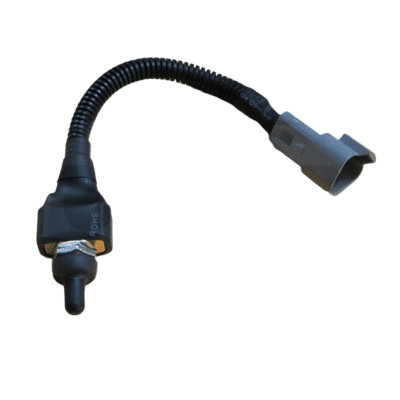

The Cat® 301-2980 Toggle Switch Assembly is engineered to provide operators with the capability to override engine protection strategies within the Caterpillar Monitoring System. This functionality ensures that machinery can continue to operate under specific conditions where an override is necessary, maintaining productivity without compromising safety.
| Feature | Specification |
|---|---|
| Part Number | 301-2980 |
| Product Type | Toggle Switch Assembly |
| Brand | Cat® |
| Function | Engine Protection Override Switch |
| Overall Length | Approximately 12.31 inches (31.27 cm) |
| Overall Height | Approximately 1.48 inches (3.76 cm) |
| Overall Width | Approximately 0.84 inches (2.13 cm) |
| Thread Size | 15/32-32 |
| Wire Length | Approximately 7.87 inches (20 cm) |
| Operating Temperature Range | -40°F to 185°F (-40°C to 85°C) |
| Connector Type | 3-pin DT |
| Weight | Approximately 0.18 pounds (0.08 kg) |
