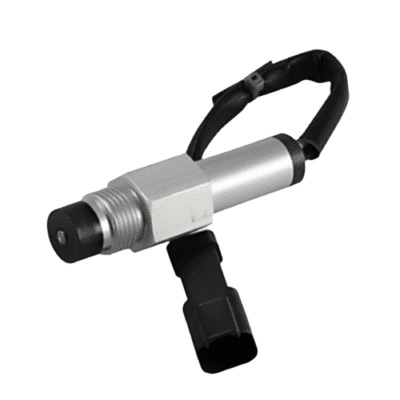

The Cat Aluminum High Output Magnetic Speed Sensor, model 183-8597, is a passive sensor designed for precise speed measurement using advanced magnetic technology. This sensor generates an alternating current (AC) output signal, with both voltage and frequency directly proportional to the actuator’s surface speed as it moves past the sensor’s pole piece. The sensor features a robust design with nylon injected over the magnet and coil, ensuring durability and reliability.
| Feature | Description |
|---|---|
| Brand | Cat |
| Model | 183-8597 |
| Type | Aluminum High Output Magnetic Speed Sensor |
| Function | Measures speed using passive magnetic technology |
| Output | Alternating current (AC) signal |
| Detection Capability | High position accuracy, not recommended for use in applications <50 rpm |
| Housing Options | Fixed nose lengths and adjustable depth housings |
| Overall Length | 3.25 inches |
| Wire Length | 5.91 inches |
| External Thread Size | 3/4 – 16 |
| Thread Length | 0.92 inches |
| Connector Pin Count | 2-pin |
| Sensor Type | Speed |
