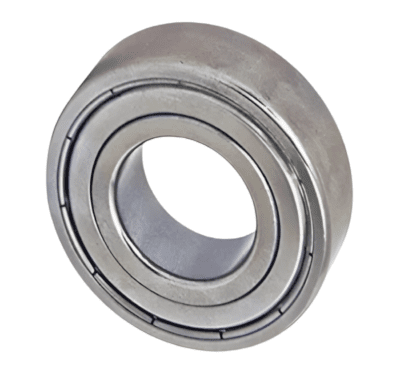

The 6211DD Single Row Deep Groove Ball Bearing is a high-quality radial bearing designed for high-speed rotation applications. This bearing features a bore size of 55mm, an outer diameter of 100mm, and a width of 21mm. Made from steel for both the inner and outer rings, it ensures durability and reliability. The bearing is double shielded and has a flat outer ring type, making it ideal for standard environments. It has a JIS Grade 0 precision, a basic dynamic load rating of 43500N, and can handle a maximum rotational speed of 6300 rpm. This bearing supports radial loads effectively and is a part of the 6200 series by Bearings.
| Attribute | Specification |
|---|---|
| Brand | Â Bearings |
| Raceway Ring Shape | Ball |
| Inner/Outer Ring Material | Steel |
| Bearing Type | Double Shielded |
| Outer Ring Type | Flat |
| Precision (JIS) | Grade 0 |
| Bore Size (I.D.) | 55mm |
| Outer Diameter (O.D.) | 100mm |
| Width | 21mm |
| Basic Dynamic Load Rating | 43500 N |
| Maximum Allowable Rotational Speed | 6300 rpm |
| Specifications/Environment | Standard |
| Load Direction | Radial |
