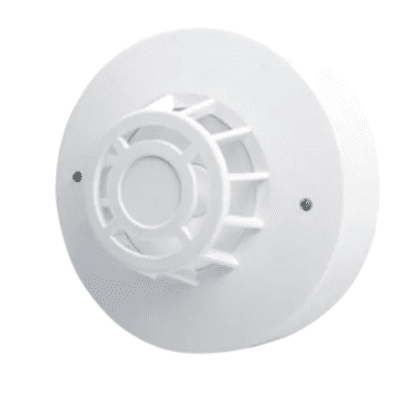

57°C (HD-504-2) Wired Heat Detector (DC 9V ~ 35V)

The HD-504-2 Wired Heat Detector is a reliable device for detecting rising temperatures, primarily designed for fire safety systems. It operates on a wide voltage range of DC 9V to 35V, with an option for orders ranging from DC 40V to 60V. The detector consumes minimal power, with a standby current of ≤50 µA for 2-wire configurations, and ≤50 µA (normally open) or ≤16 mA (normally closed) for 4-wire systems. It is designed to activate when the ambient temperature reaches 57°C, signaling the alarm visually through a red LED. The alarm current for 2-wire setups is between 20-25 mA at 12V and 40-50 mA at 24V, while in 4-wire systems, it is ≤40 mA (normally open) and ≤20 mA (normally closed). It offers flexibility in resetting, either through power-off or automatic reset. The alarm output varies based on the configuration, providing a remote LED for 2-wire systems and a relay output for 4-wire systems. This heat detector complies with EN54-5:2008 standards and holds CE certification, ensuring its reliability and safety. Compact in size, the detector has dimensions of Ø99 mm in diameter and 43.5 mm in height, making it suitable for a wide variety of installations.
