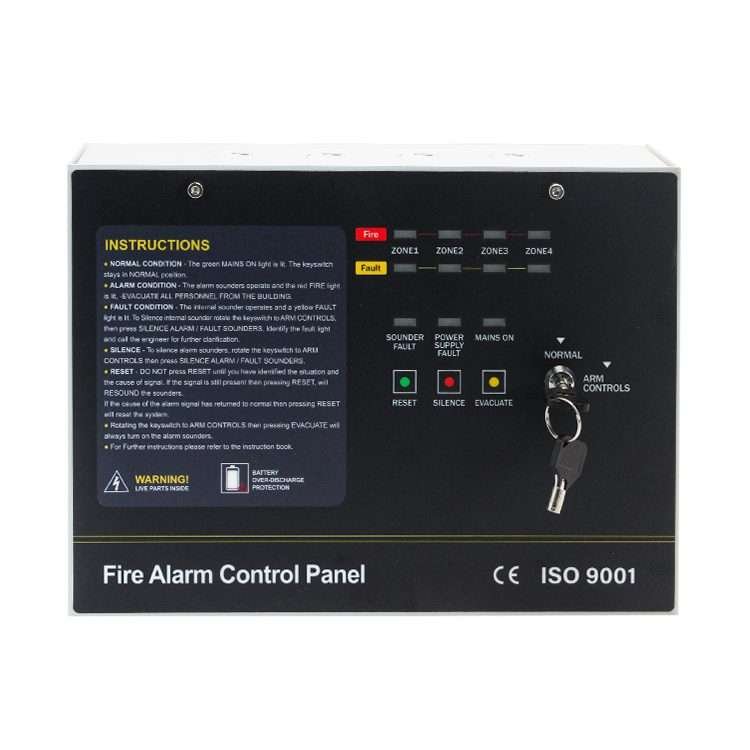

The NW8000A-16 is a conventional fire alarm control panel designed to provide reliable fire detection coverage across 1, 2, 4, or 8 zones, making it suitable for various building sizes. It operates with an AC input of 220-230V and provides a stable DC output of 27V. The panel is equipped with two 12V/1.3Ah backup batteries for continuous operation during power outages. Each zone supports up to 20 smoke or heat detectors, ensuring comprehensive monitoring. A 6.8kΩ end-of-line resistor is used to maintain system integrity, while the panel supports a siren output with a maximum current of 400mA for effective audible alerts. The compact and durable design includes an iron body measuring 275mm x 200mm x 72.5mm and weighs 2.3kg without batteries.
| Feature | Specification |
|---|---|
| Model | NW8000A-16 |
| Zone Numbers | 1, 2, 4, 8 zones |
| AC Input | 220V~230V |
| DC Output | 27V DC |
| Battery Type | 2 x 12V/1.3Ah |
| Max Detectors per Zone | 20 pcs (Smoke/Heat detectors) |
| End of Line Resistor | 6.8kΩ |
| Siren Output | Available |
| Max Output Current | 400mA |
| Dimensions (L x W x H) | 275mm x 200mm x 72.5mm |
| Body Material | Iron |
| Weight (without battery) | 2.3kg |
