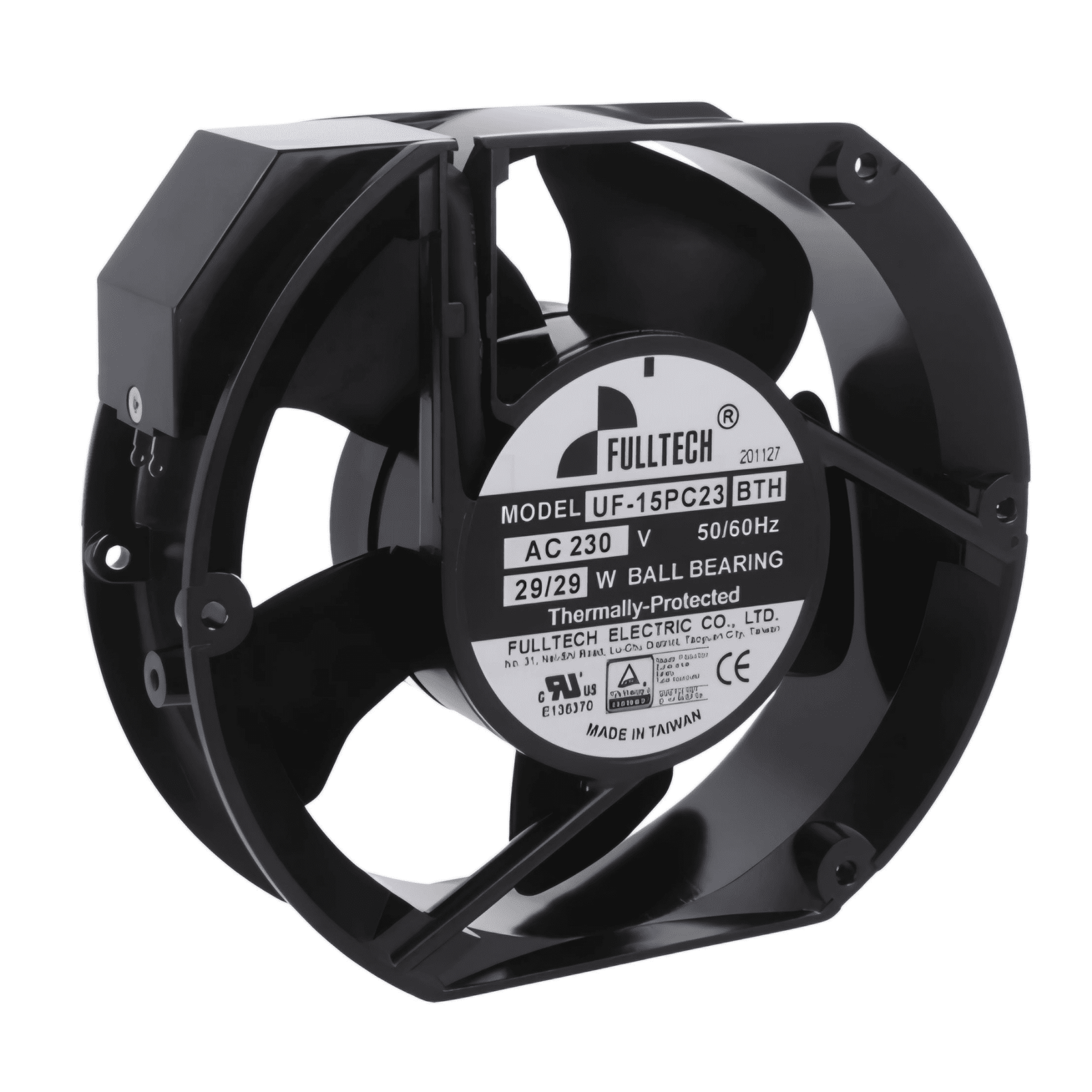

The 230V 29W Cabinet Fan Power Supply Cooling Fan – UF-15PC23BTH is an advanced cooling solution designed for efficient heat dissipation in power supply cabinets. Featuring a compact yet powerful design, this fan ensures optimal airflow and pressure while maintaining low noise levels. Its robust construction and advanced features make it an ideal choice for reliable and long-lasting performance.
| Specification | Details |
|---|---|
| Part Status | Active |
| Voltage – Rated | 230VAC |
| Size / Dimension | Rectangular/Rounded – 172mm L x 150mm H |
| Width | 51.00mm |
| Air Flow | 226.0 CFM (6.33m³/min) |
| Static Pressure | 0.790 in H2O (196.8 Pa) |
| Bearing Type | Ball Bearing |
| Fan Type | Tubeaxial |
| Features | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) |
| Noise Level | 58.0 dB(A) |
| Power (Watts) | 31.00W |
| Rotation Speed | 3400 RPM |
| Termination | 2 Terminals |
