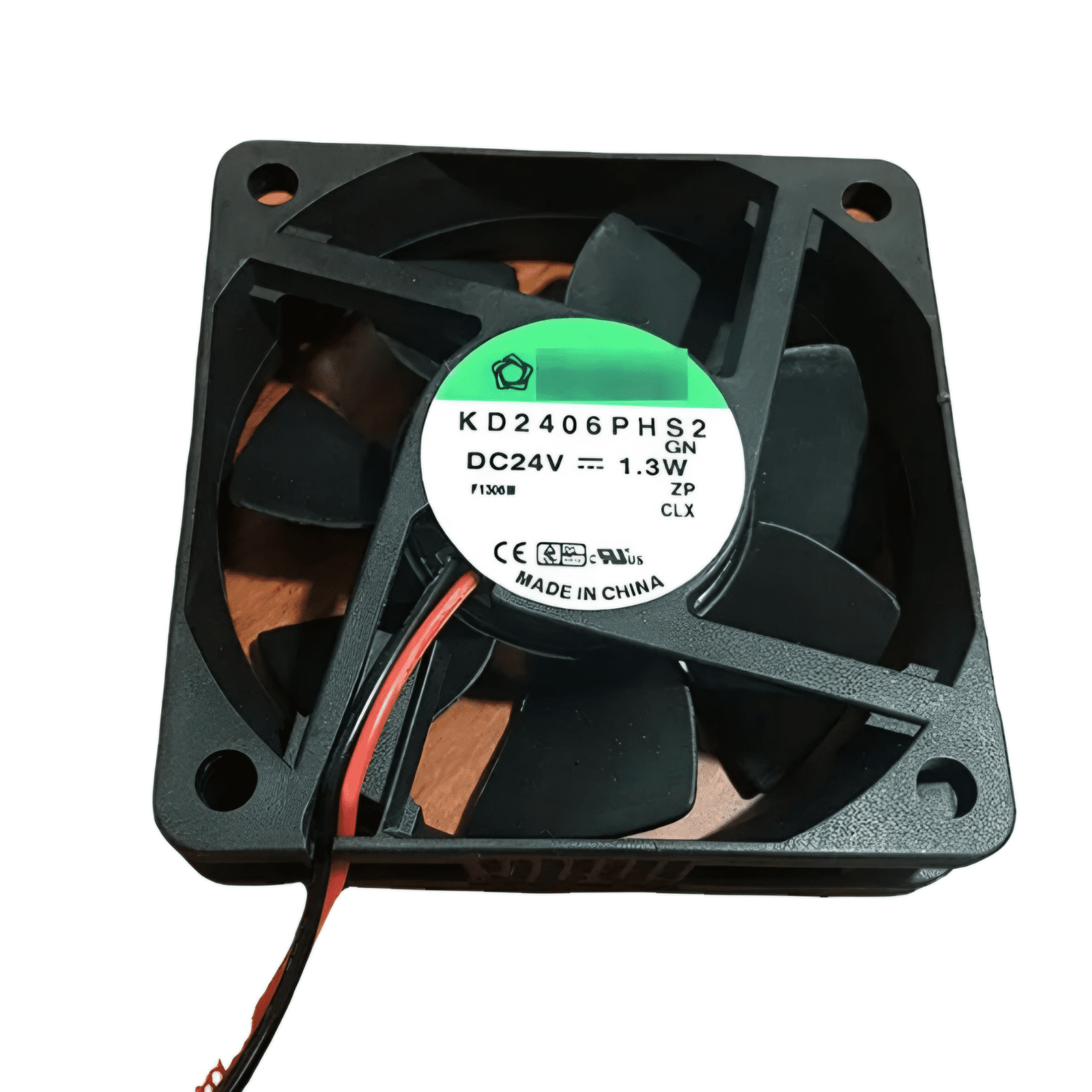

The 24V cooling fan series, featuring models KD2406PHS1, KD2406PHS2.GN, and KDE2406PHS2, is engineered to provide efficient and reliable cooling for a wide range of applications. These fans are built with a compact square frame of 60mm in length and height, and a width of 15mm, making them ideal for use in tight spaces.
| Specification | Details |
|---|---|
| Model Numbers | KD2406PHS1, KD2406PHS2.GN, KDE2406PHS2 |
| Voltage – Rated | 24VDC |
| Size / Dimension | 60mm L x 60mm H x 15mm W |
| Air Flow | 21.0 CFM (0.588 m³/min) |
| Static Pressure | 0.180 in H2O (45.0 Pa) |
| Bearing Type | Sleeve |
| Fan Type | Tubeaxial |
| Noise | 36.0 dB(A) |
| Power (Watts) | 2.1 W |
| RPM | 4300 RPM |
| Termination | 2 Wire Leads |
| Current Rating (Amps) | 0.086A |
