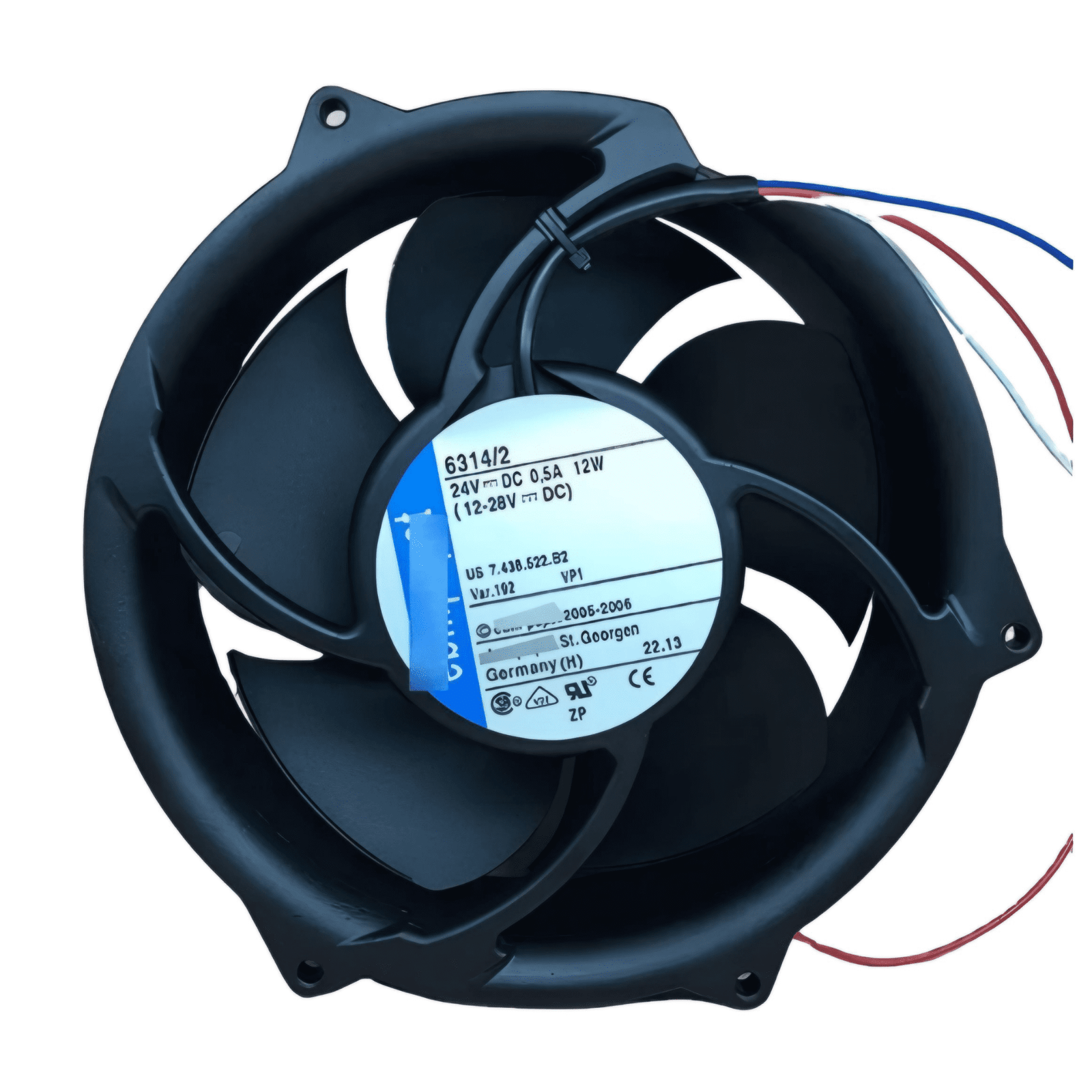

The 24V 0.50A 12W three-line aluminum frame imported fan -6314/2 is engineered for optimal cooling performance in various industrial and electronic applications. Featuring a robust aluminum frame, this fan measures 172mm in diameter with a width of 50.80mm. It operates at a rated voltage of 24VDC and delivers an impressive airflow of 418.0 CFM (11.70 m³/min) at a high speed of 7000 RPM.
| Specification | Details |
|---|---|
| Voltage – Rated | 24VDC |
| Size / Dimension | Round – 172mm Dia |
| Width | 50.80mm |
| Air Flow | 418.0 CFM (11.70 m³/min) |
| Static Pressure | – |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | PWM Control, Speed Sensor (Tach) |
| Noise Level | 69.0 dB(A) |
| Power Rating | 67 W |
| Speed | 7000 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | – |
| Operating Temperature | -4 to 158°F (-20 to 70°C) |
