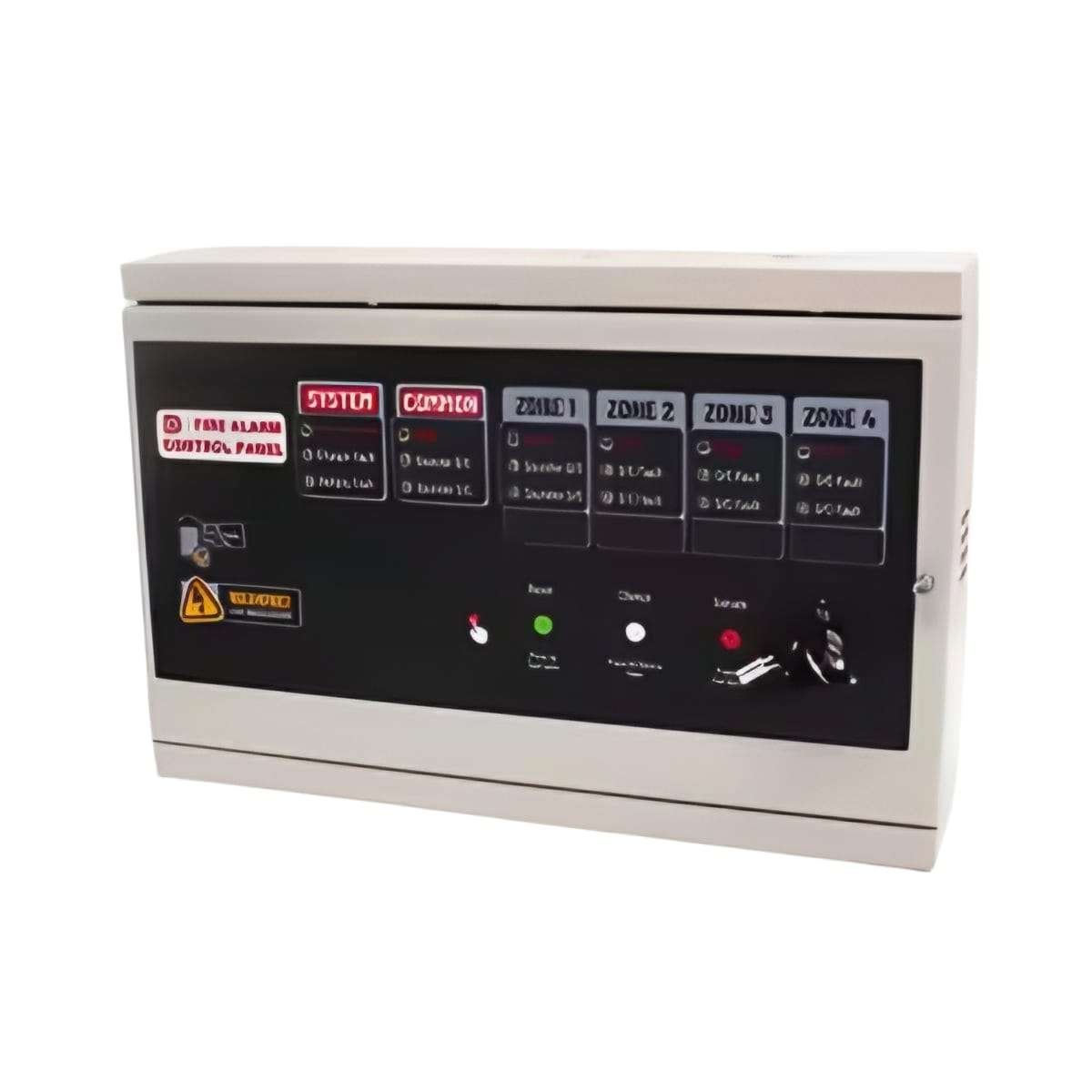

The NW8200-4 is a conventional fire control panel designed for reliable fire detection and alarm management in various settings. This panel supports up to 4 zones and operates with an AC input ranging from 110VAC to 240VAC. It maintains a system voltage of 29V DC for optimal performance. Featuring a backup battery configuration of 2 x 12V 1.3Ah, it ensures continued operation during power outages. Each zone can connect up to 20 smoke or heat detectors, providing extensive monitoring capabilities. The panel is equipped with a 4.7kΩ end-of-line resistor to maintain circuit integrity, and it offers relay outputs for alarms per zone. Additionally, it features two siren outputs for enhanced emergency alerting. The panel’s dimensions are 320mm x 242mm x 88mm, making it suitable for various installation environments.
| Feature | Specification |
|---|---|
| Model | NW8200-4 |
| Maximum Output of Switching Power Supply | 3A |
| Zone Numbers | 1, 2, 4 zones |
| AC Input | 110VAC-240VAC |
| System Voltage | 29V DC Normal |
| Battery Type | 2 x 12V 1.3Ah |
| Maximum Number of Detectors per Zone | 20 pcs |
| End of Line Resistor | 4.7kΩ |
| Alarm Output | Relay/Zone |
| Siren Output | 2 x Available |
| Dimensions (L x W x H) | 320mm x 242mm x 88mm |
