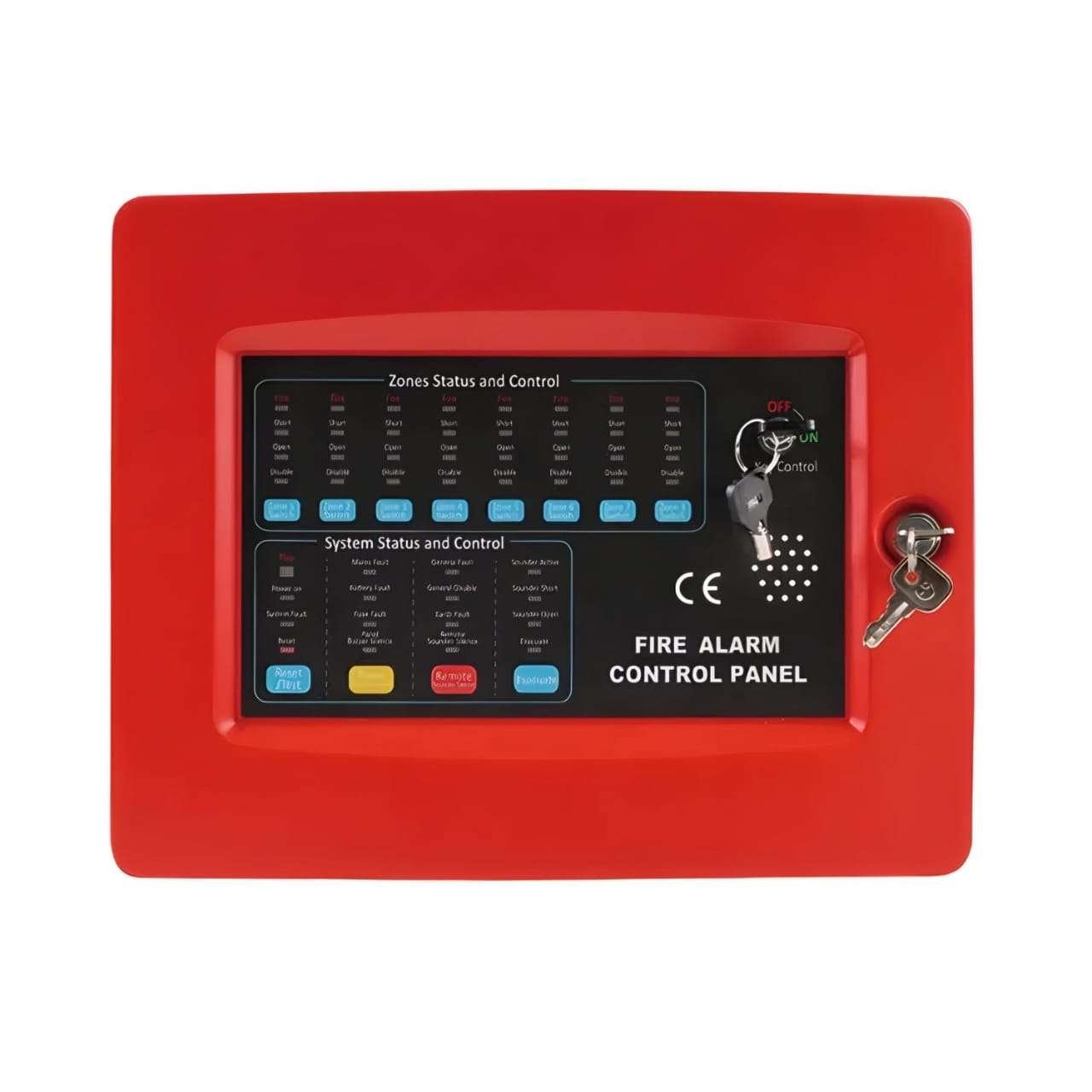

The NW-8400-8 is a sophisticated conventional fire control panel designed for enhanced safety and flexibility. With a maximum output of 3A from its switching power supply, this panel accommodates various configurations, supporting 1, 2, 4, or 8 zones to cater to diverse fire protection needs. Operating on an AC input range of 110-240 VAC, the NW-8400-8 maintains a stable system voltage of 29V DC. It is equipped with two 12V/1.3 Ah batteries, ensuring reliable performance even in power outages. Each zone features a stop function, allowing users to manage alarms effectively. The panel supports up to 20 conventional detectors per zone, utilizing a 4.7kΩ end-of-line resistor for optimal circuit performance. Alarm outputs are provided through relays, and the system includes four siren outputs to ensure effective alerting. An LED display enhances user interaction by clearly indicating the system’s operational status.
| Feature | Specification |
|---|---|
| Model | NW-8400-8 |
| Maximum Output of Power Supply | 3A |
| Zone Numbers | 1, 2, 4, 8 zones |
| AC Input | 110-240 VAC |
| System Voltage | 29V DC Normal |
| Battery Type | 2 x 12V / 1.3 Ah |
| Stop Function | Each zone has a stop function |
| Maximum Detectors per Zone | 20 conventional detectors |
| End of Line Resistor | 4.7kΩ |
| Alarm Output | Relay |
| Siren Output | 4 x Available |
| Display | LED |
