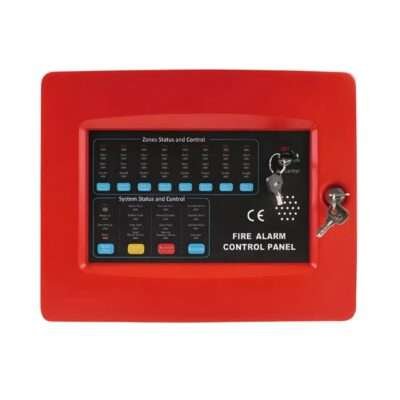

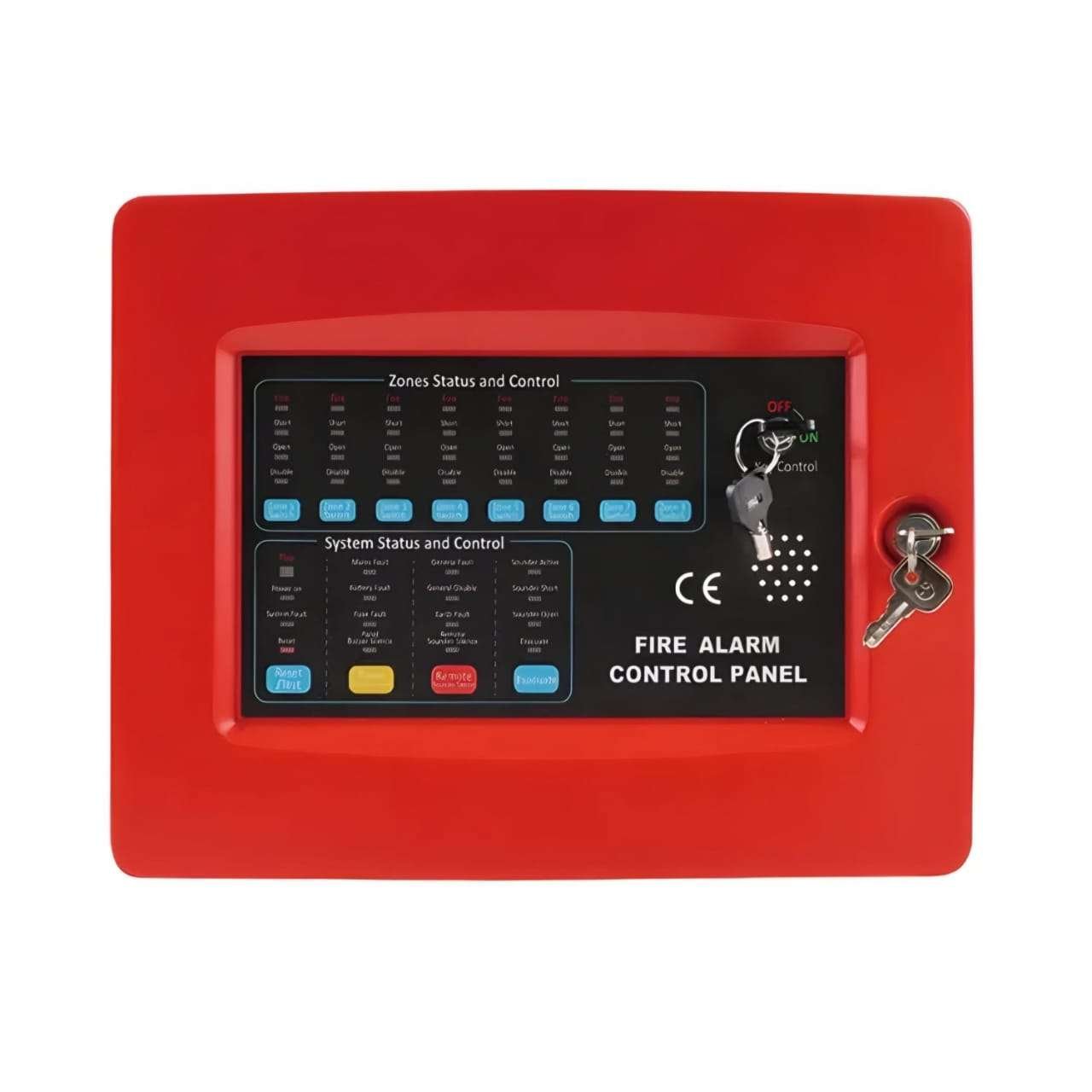

The NW-8400-4 is a reliable conventional fire control panel designed to enhance fire safety in various settings. It features a maximum output of 3A from the switching power supply and can be configured for 1, 2, 4, or 8 zones, providing flexibility for different applications. This panel operates with an AC input range of 110-240 VAC and maintains a system voltage of 29V DC. It is powered by two 12V/1.3 Ah batteries, ensuring dependable operation even during power outages. Each zone is equipped with a stop function, allowing for effective management of alarms and detection systems. The NW-8400-4 supports up to 20 conventional detectors per zone, with a 4.7kΩ end-of-line resistor for circuit integrity. The alarm output is provided via a relay, and the system includes four siren outputs to maximize alert capabilities. An LED display offers clear visibility of the system’s operational status.
| Feature | Specification |
|---|---|
| Model | NW-8400-4 |
| Maximum Output of Power Supply | 3A |
| Zone Numbers | 1, 2, 4, 8 zones |
| AC Input | 110-240 VAC |
| System Voltage | 29V DC Normal |
| Battery Type | 2 x 12V / 1.3 Ah |
| Stop Function | Each zone has a stop function |
| Maximum Detectors per Zone | 20 conventional detectors |
| End of Line Resistor | 4.7kΩ |
| Alarm Output | Relay |
| Siren Output | 4 x Available |
| Display | LED |
